Mobile Primary Jaw Crusher — GNR Series

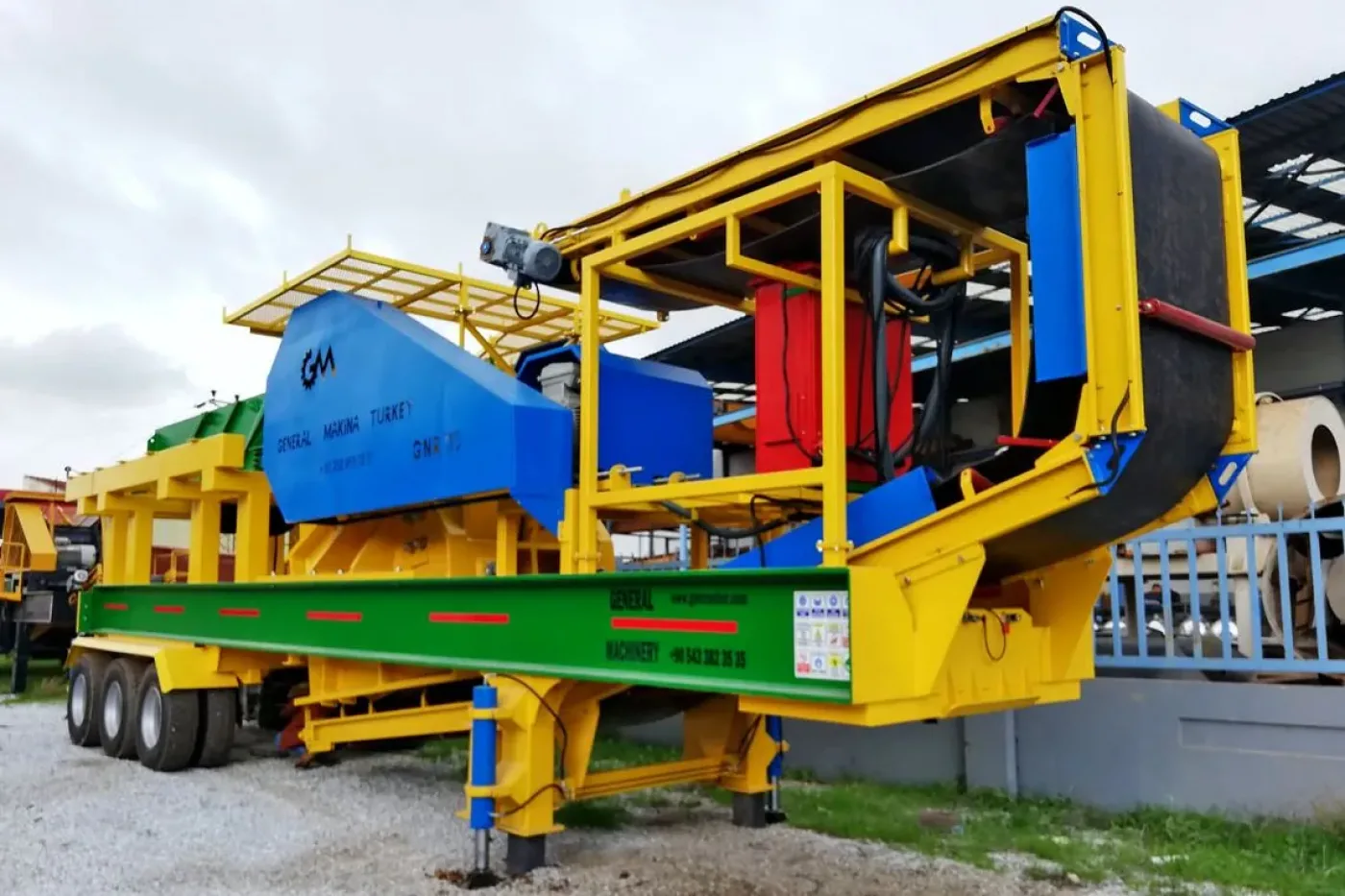

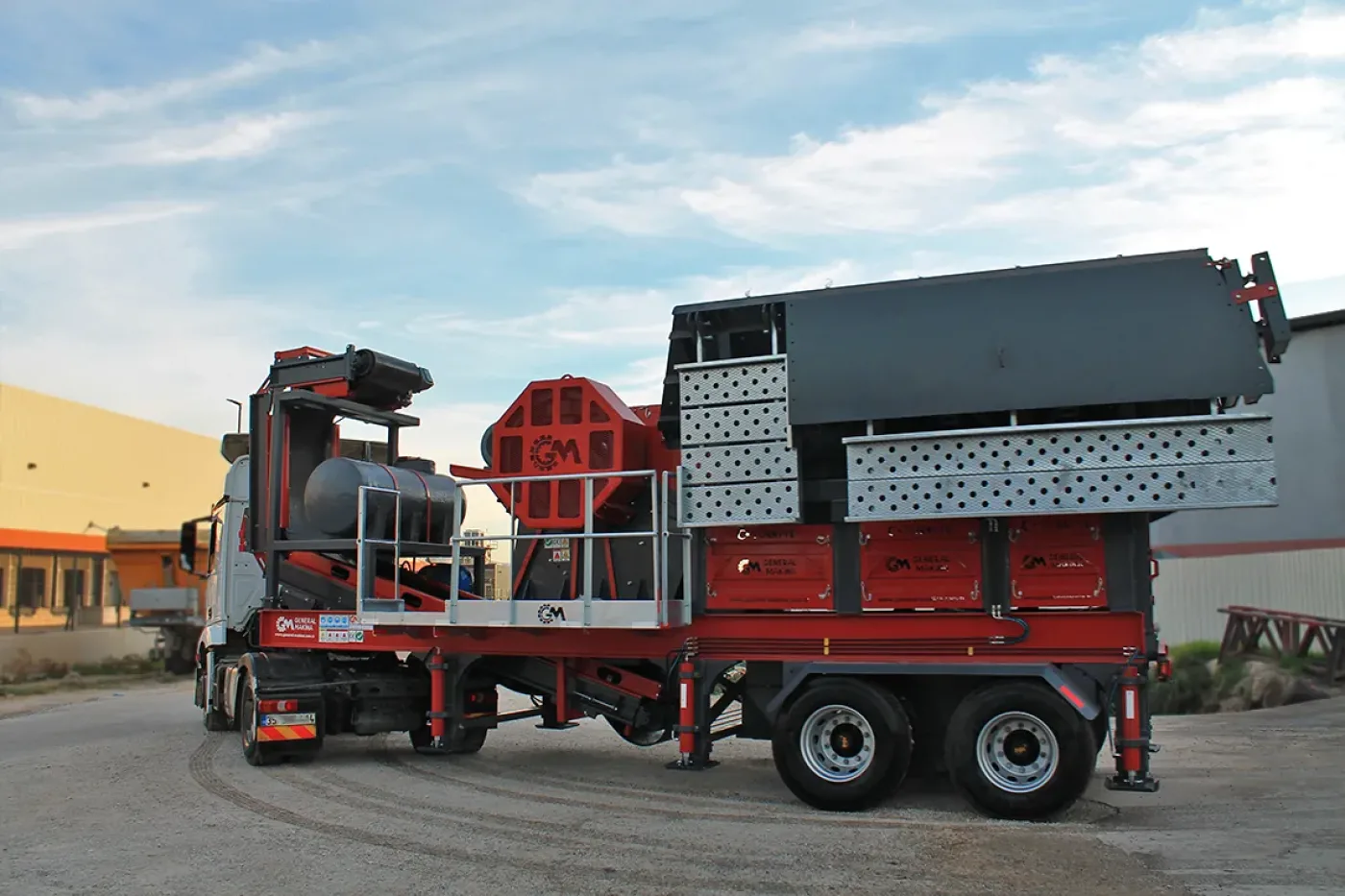

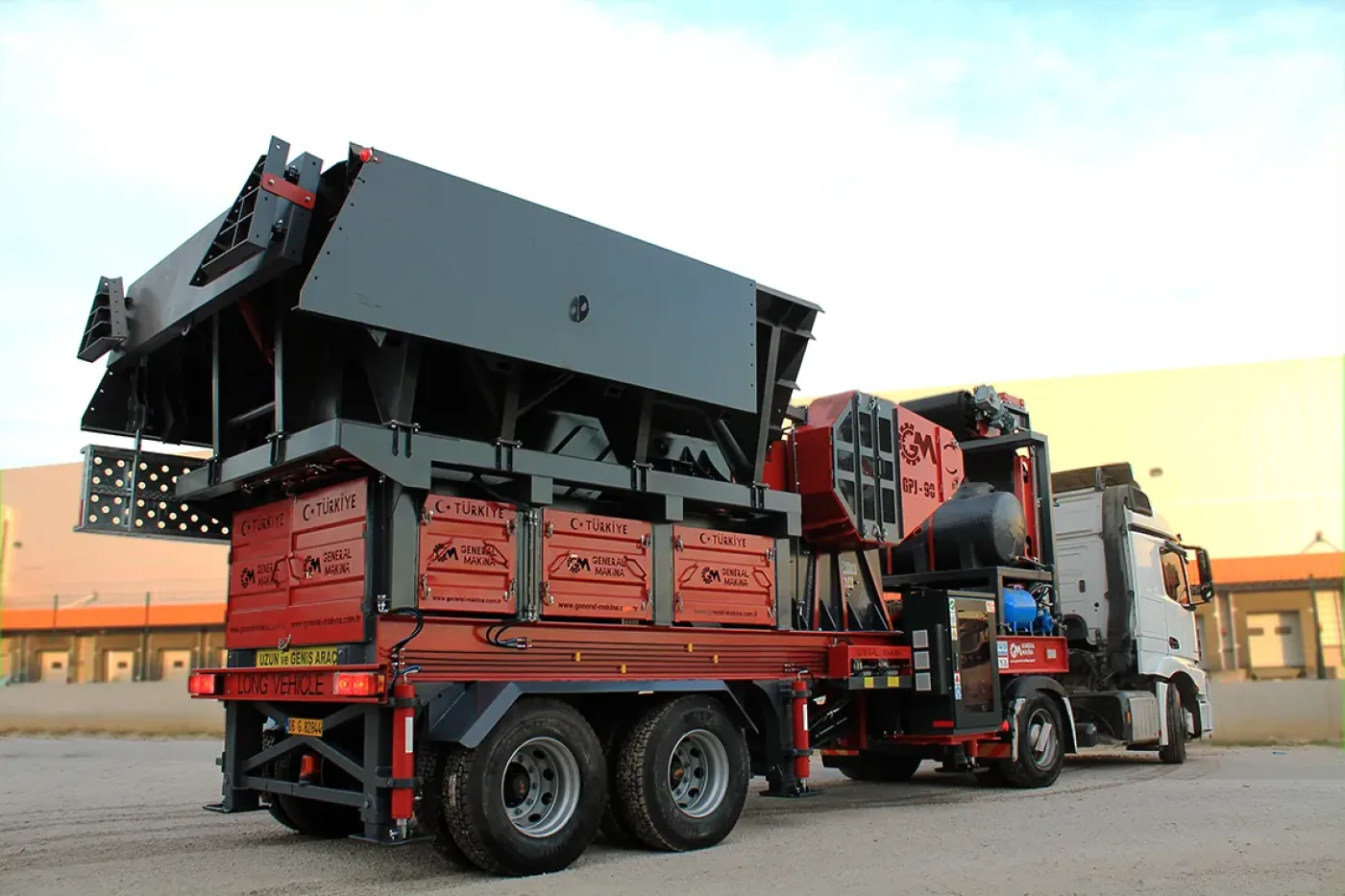

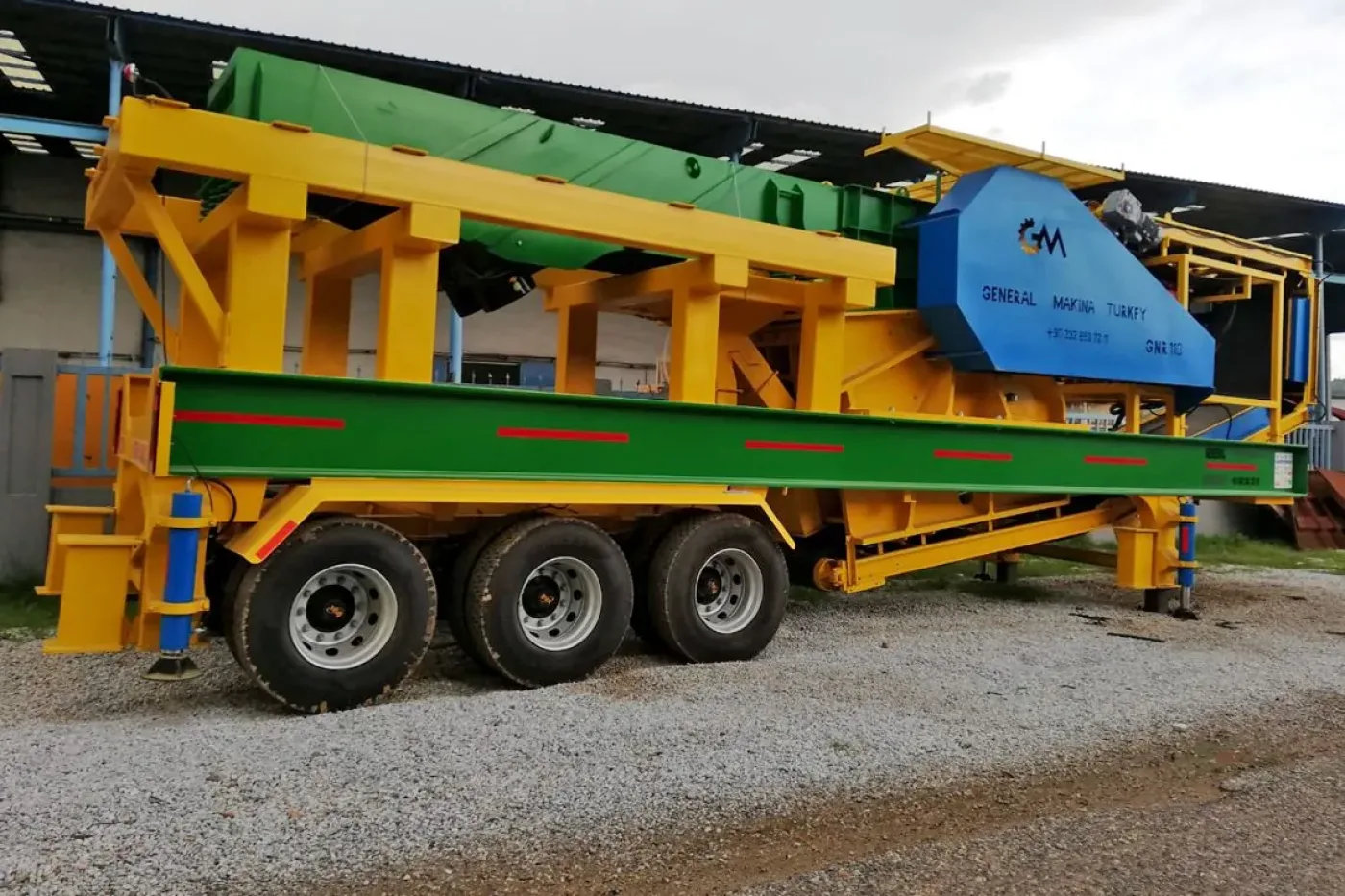

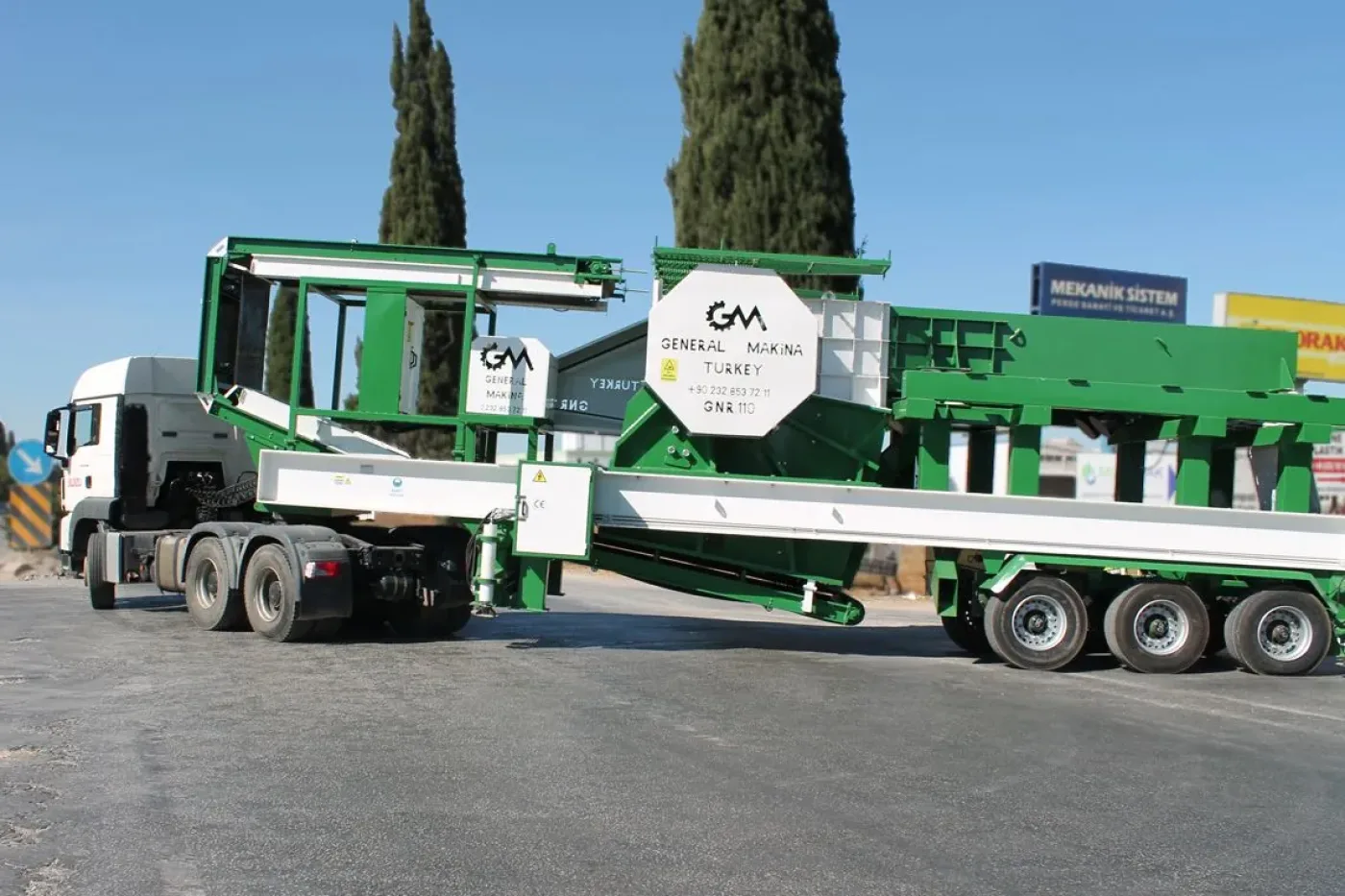

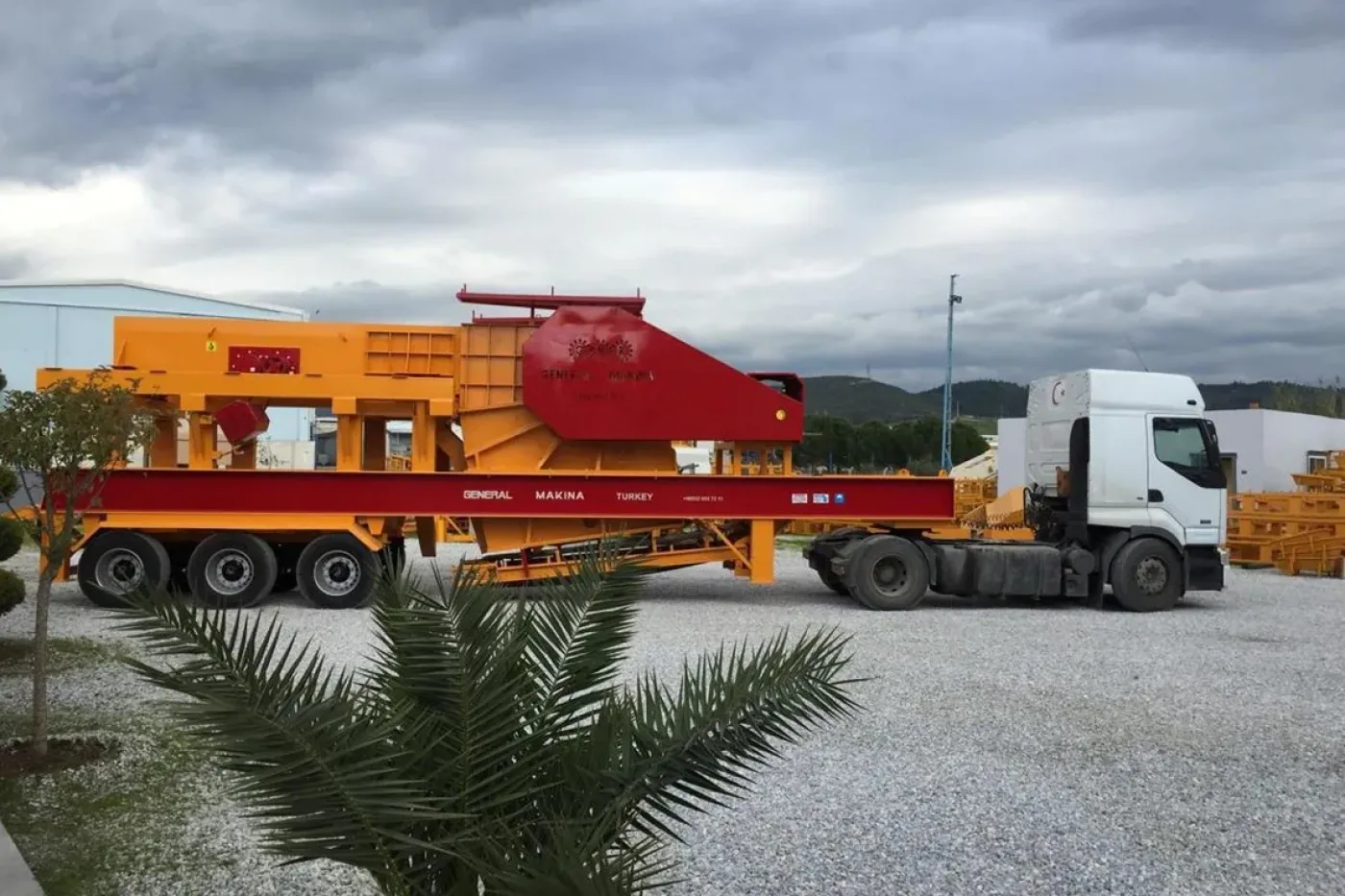

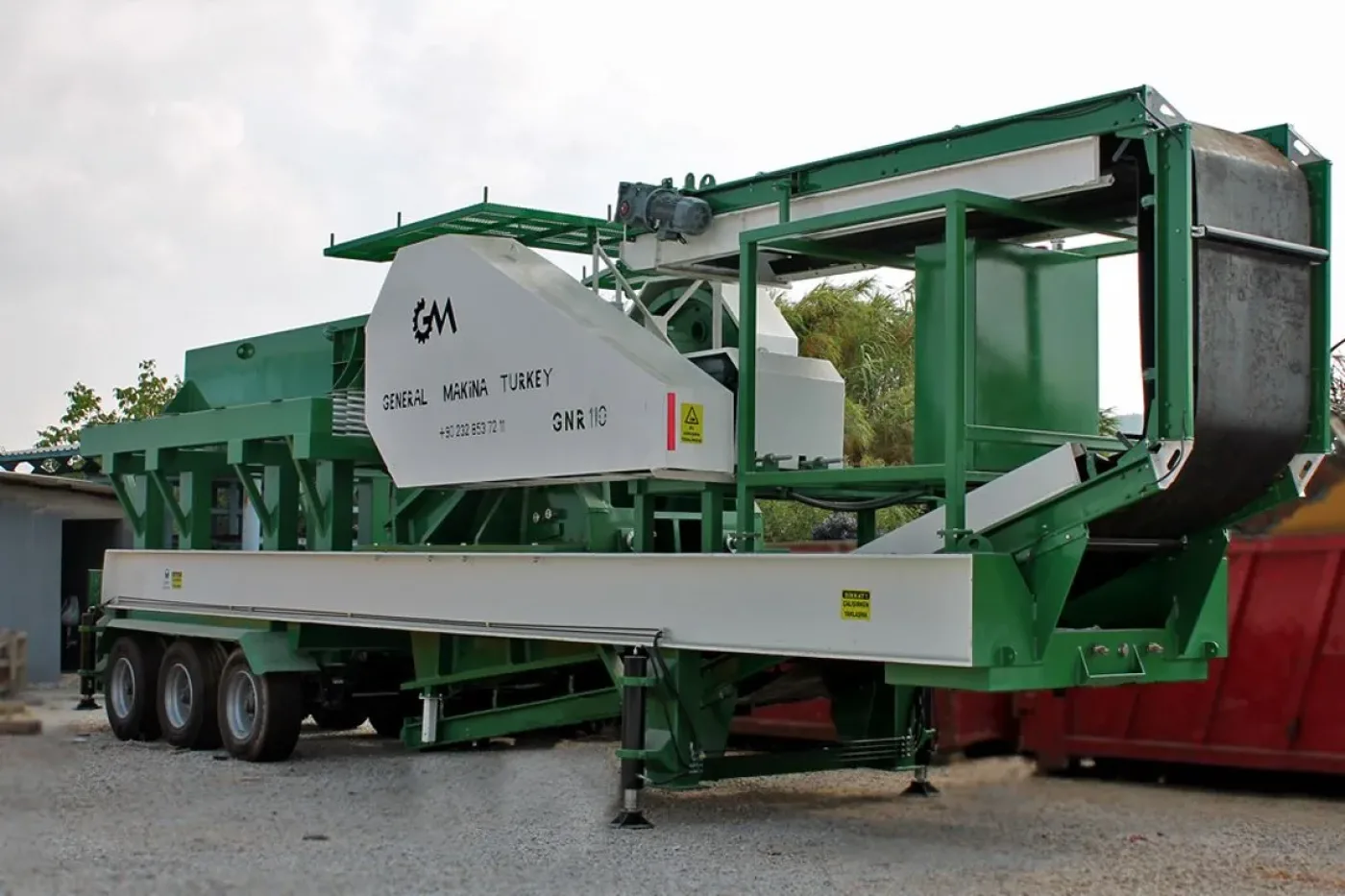

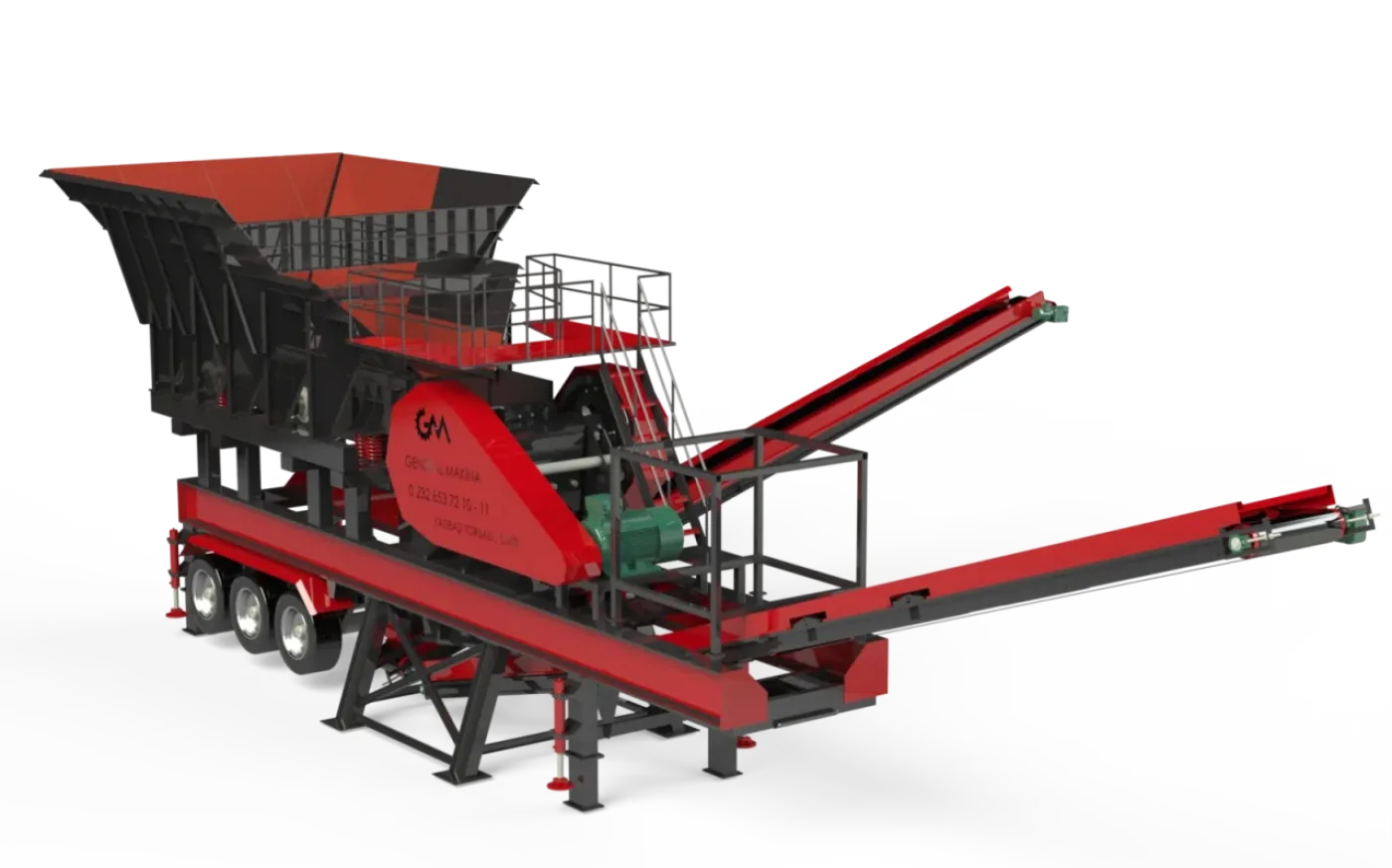

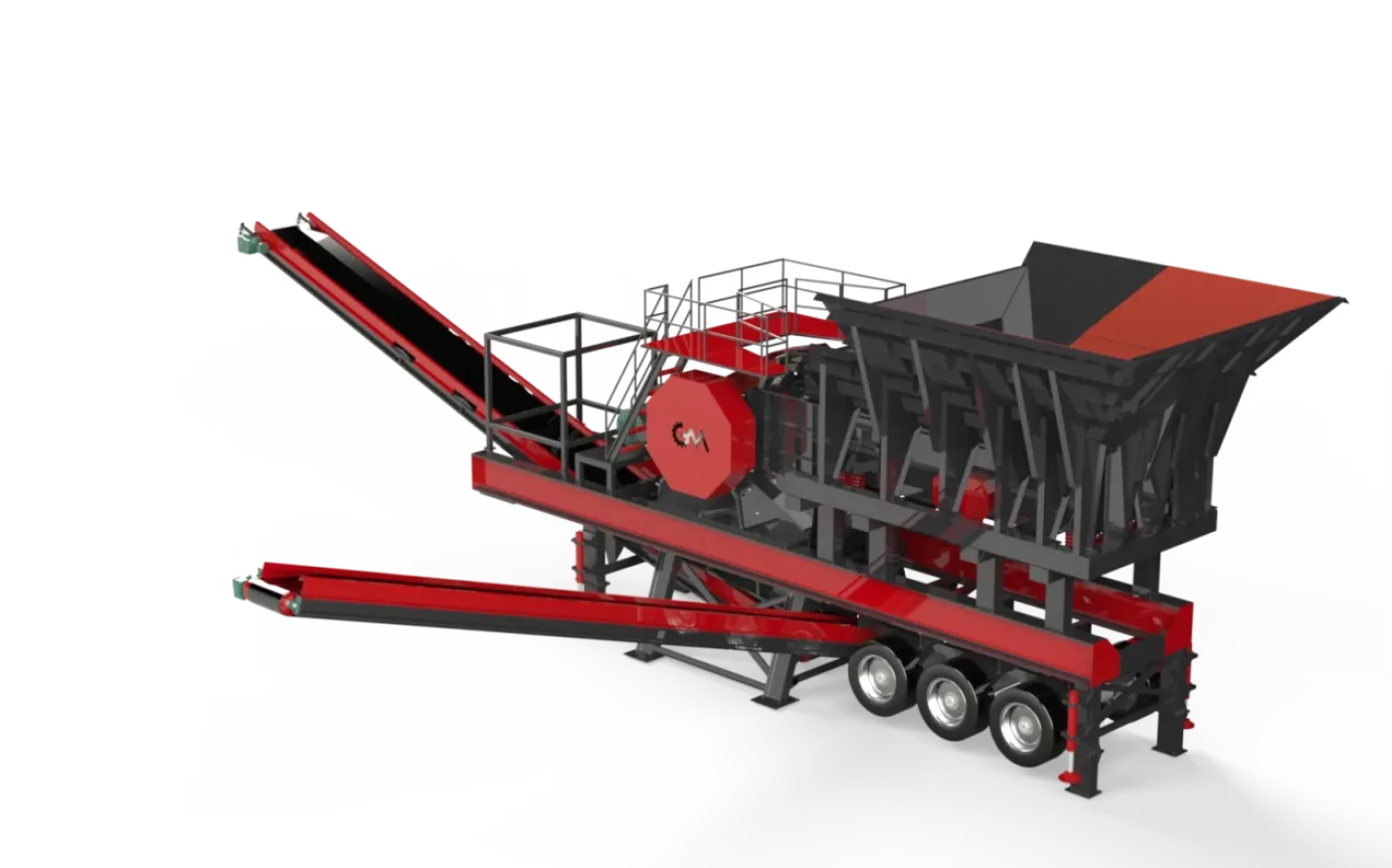

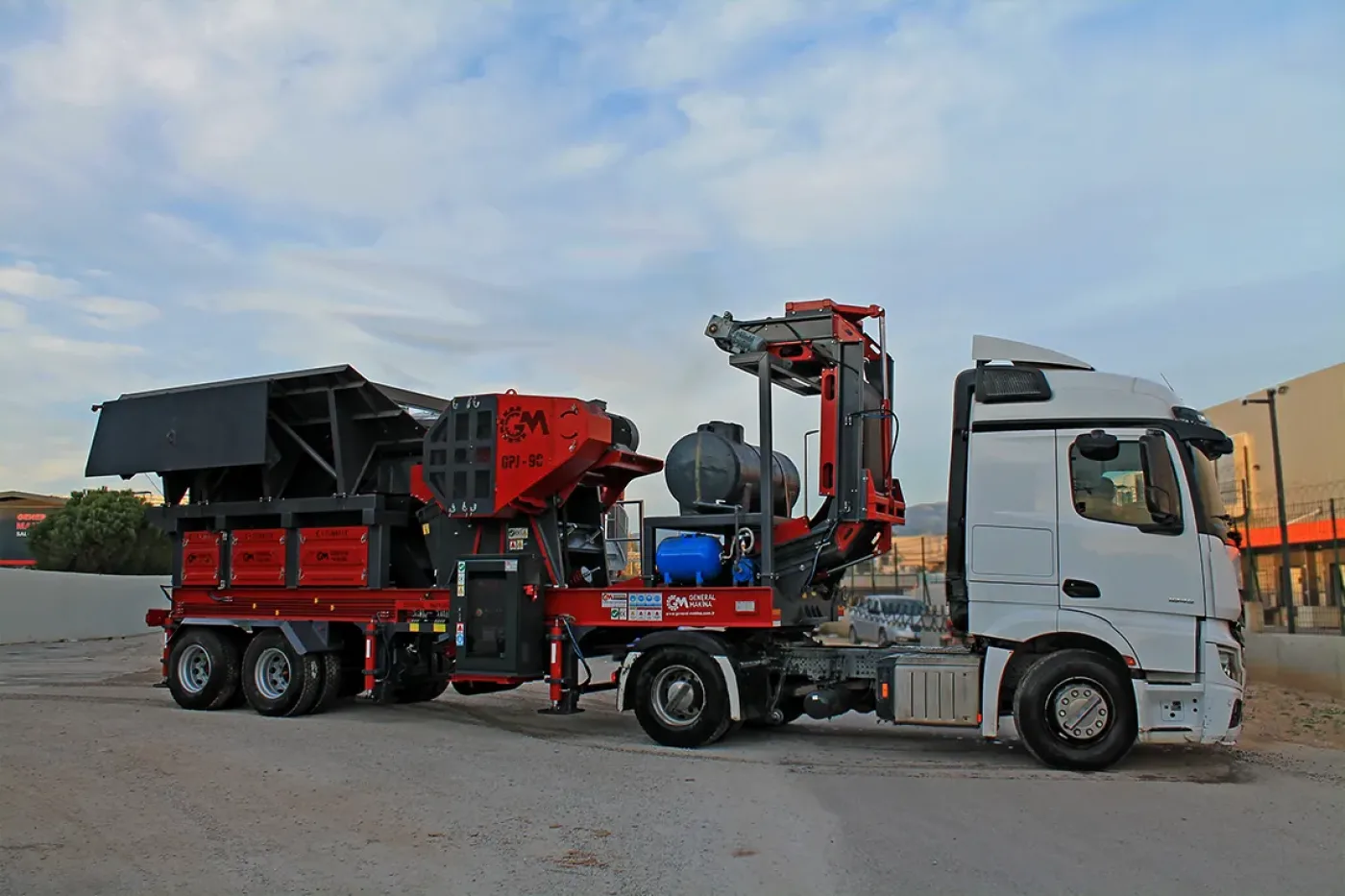

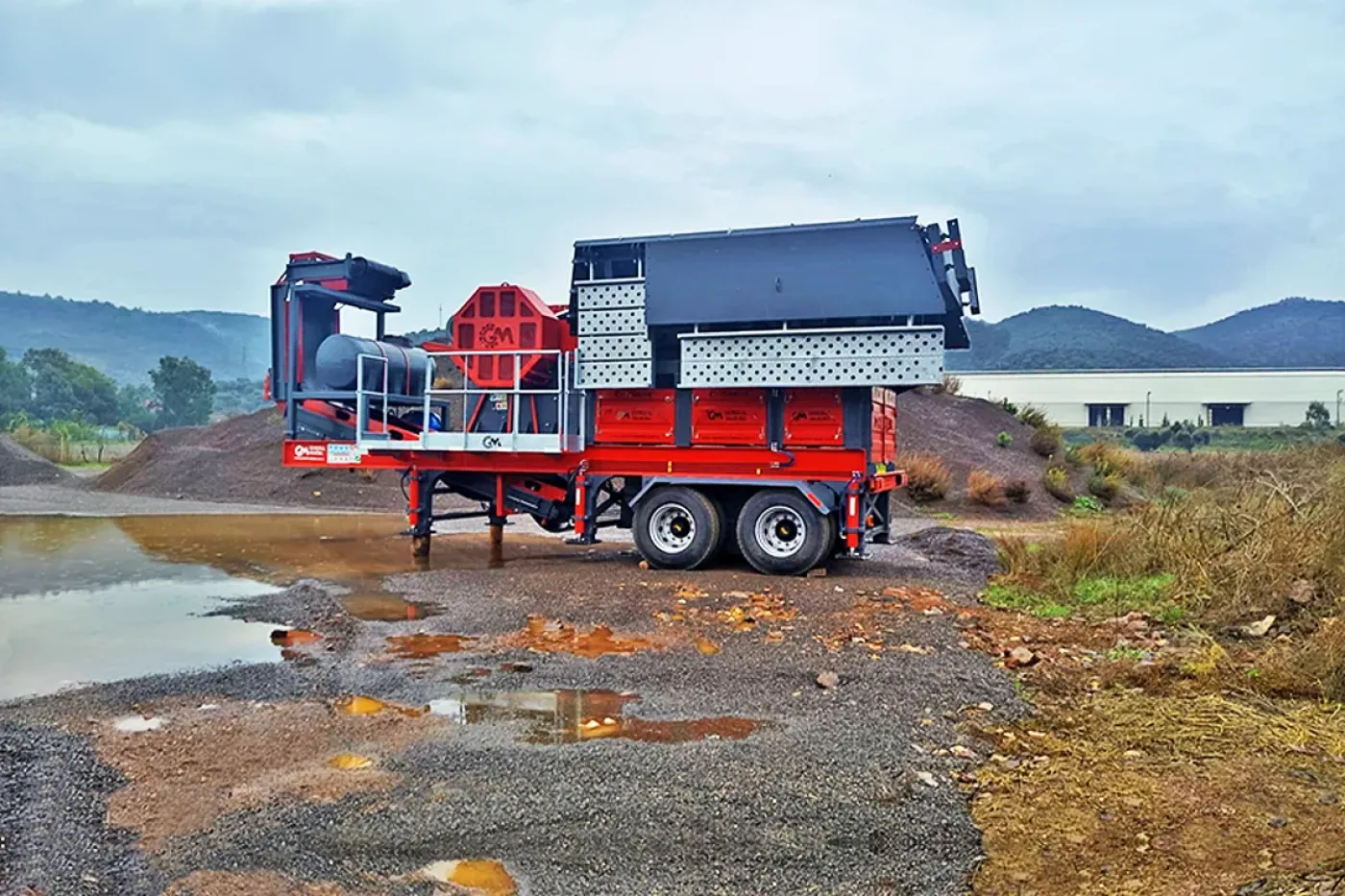

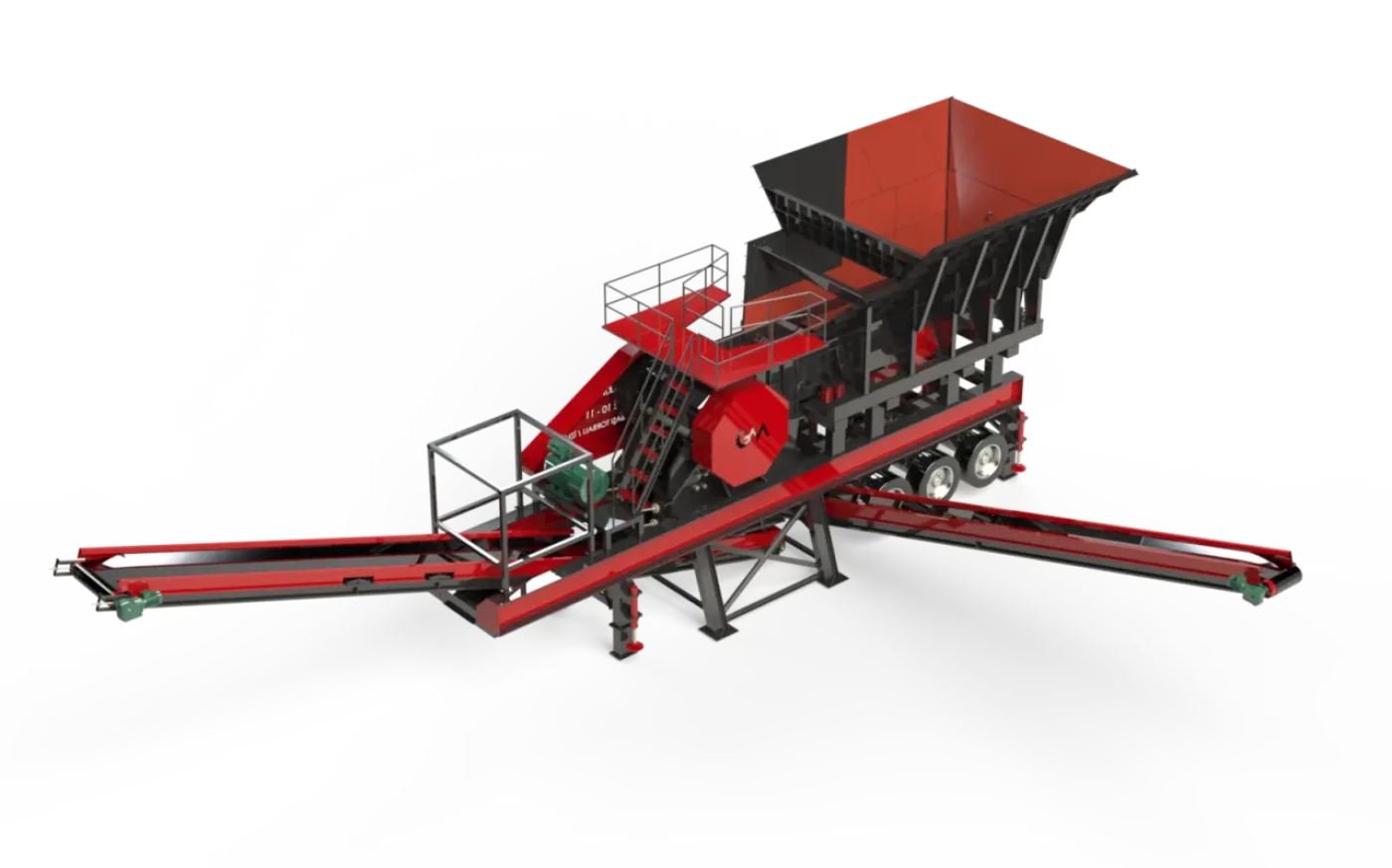

The Mobile Primary Jaw Crusher combines a feeder hopper and jaw crusher on a single chassis. Feed 0-1100 mm, product 0-250 mm, capacity 40-300 t/h across GNR 60, 90 and 110 models. Towed by a single truck and set up without foundations via hydraulic legs. The Mobile Primary Jaw Crusher combines an armoured feeder hopper and a jaw crusher on a single chassis as a portable primary crushing unit. It accepts 0-1100 mm feed, delivers 0-250 mm product and works at 40-300 t/h depending on model. It is towed by a single truck and commissioned without foundations on hydraulic legs. Working principle Material is reduced by compression between a fixed jaw and an eccentric-shaft moving jaw; product discharges at the CSS setting. The unit handles the primary stage only; secondary and tertiary stages are added as separate units so the plant grows stage by stage. Material and application The jaw compression principle suits every hardness and abrasivity class and is the correct primary choice for high-silica, abrasive rock such as granite and basalt, where it does not consume metal as fast as an impact primary. Jaw plates are austenitic manganese steel (Mn13/Mn18) that work-hardens under impact. Typical reduction 4:1-9:1. Bridge to a full plant This unit does not produce a full gradation; for a closed-circuit screened solution see Mobile Crushing Plants, and for the next stage see the Mobile Secondary Impact or Mobile Cubicizer units. Request a quote for model selection and pricing. S: What is the feed size? C: The unit accepts 0-1100 mm feed and delivers 0-250 mm final product. S: What is the capacity? C: 40-300 t/h by model: GNR 60 20-80, GNR 90 70-180, GNR 110 180-300 t/h. S: How long does setup take? C: It is commissioned quickly on hydraulic legs without any foundation work. S: Which rock types can it crush? C: All hard, abrasive rock including granite and basalt; compression is the right choice for abrasive stone. S: Can it be moved by a single truck? C: Yes, it is a single-chassis unit towed by one truck.
