Mobile Pre-Screen Impact Crusher (DMK)

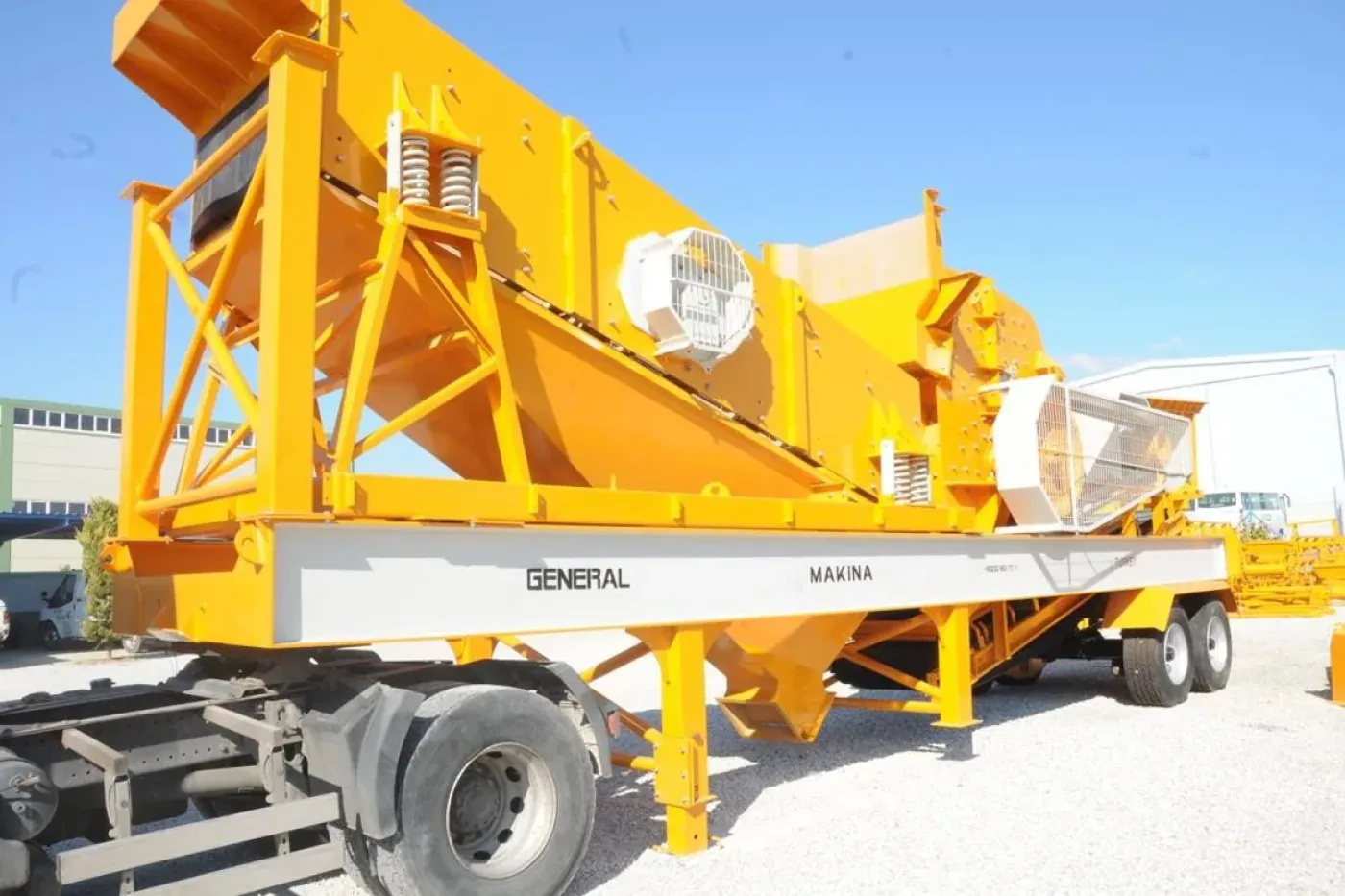

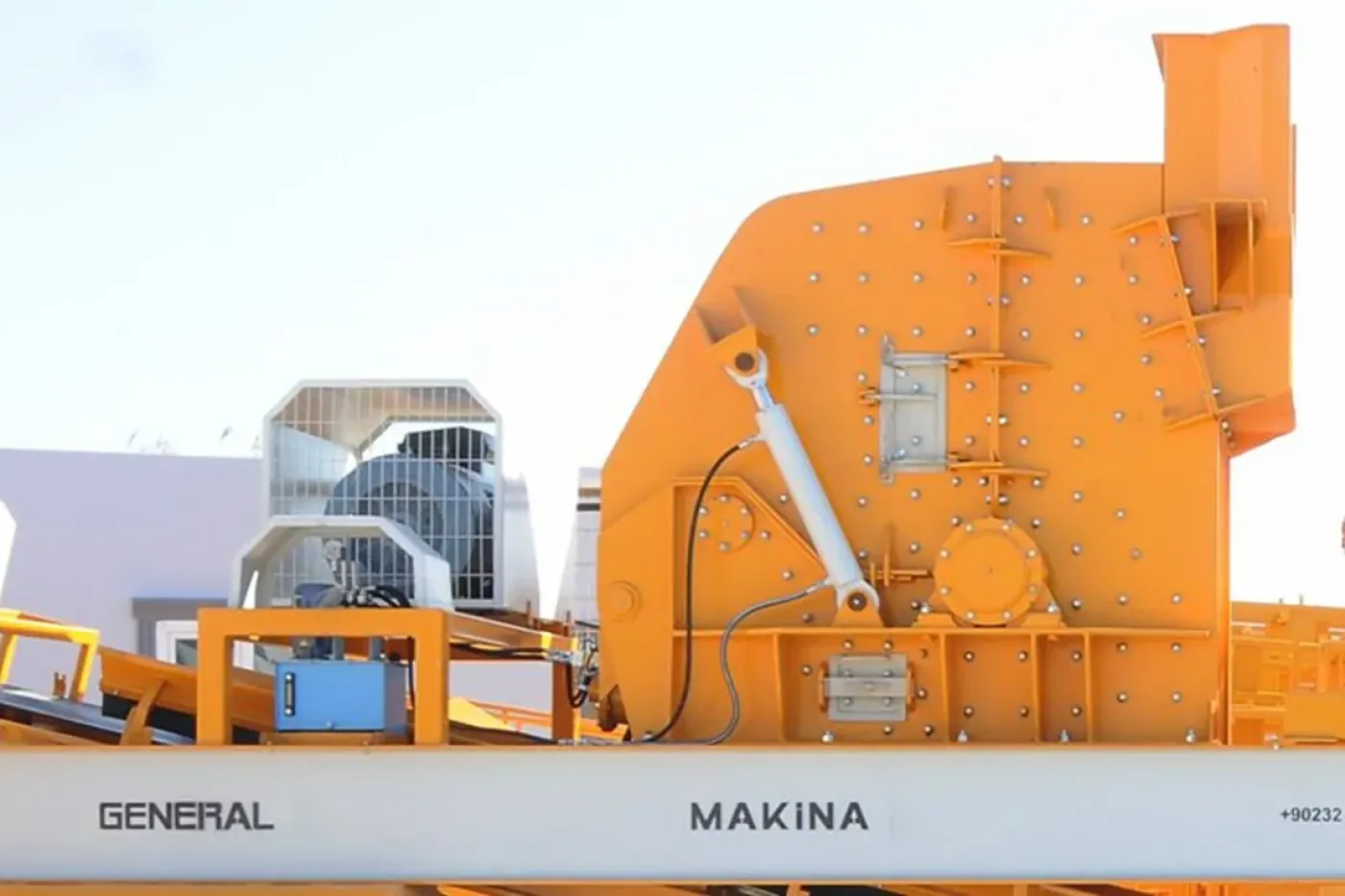

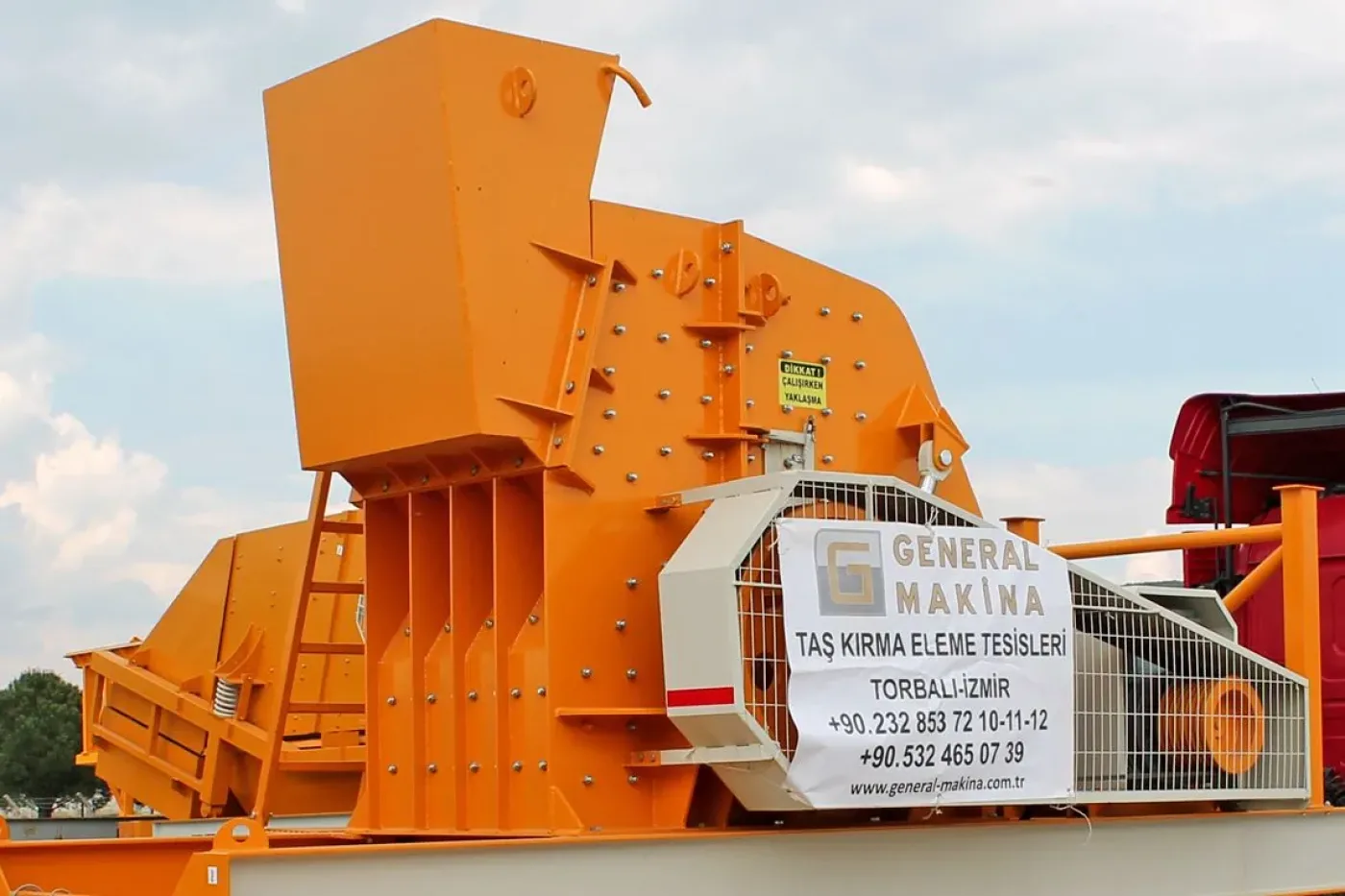

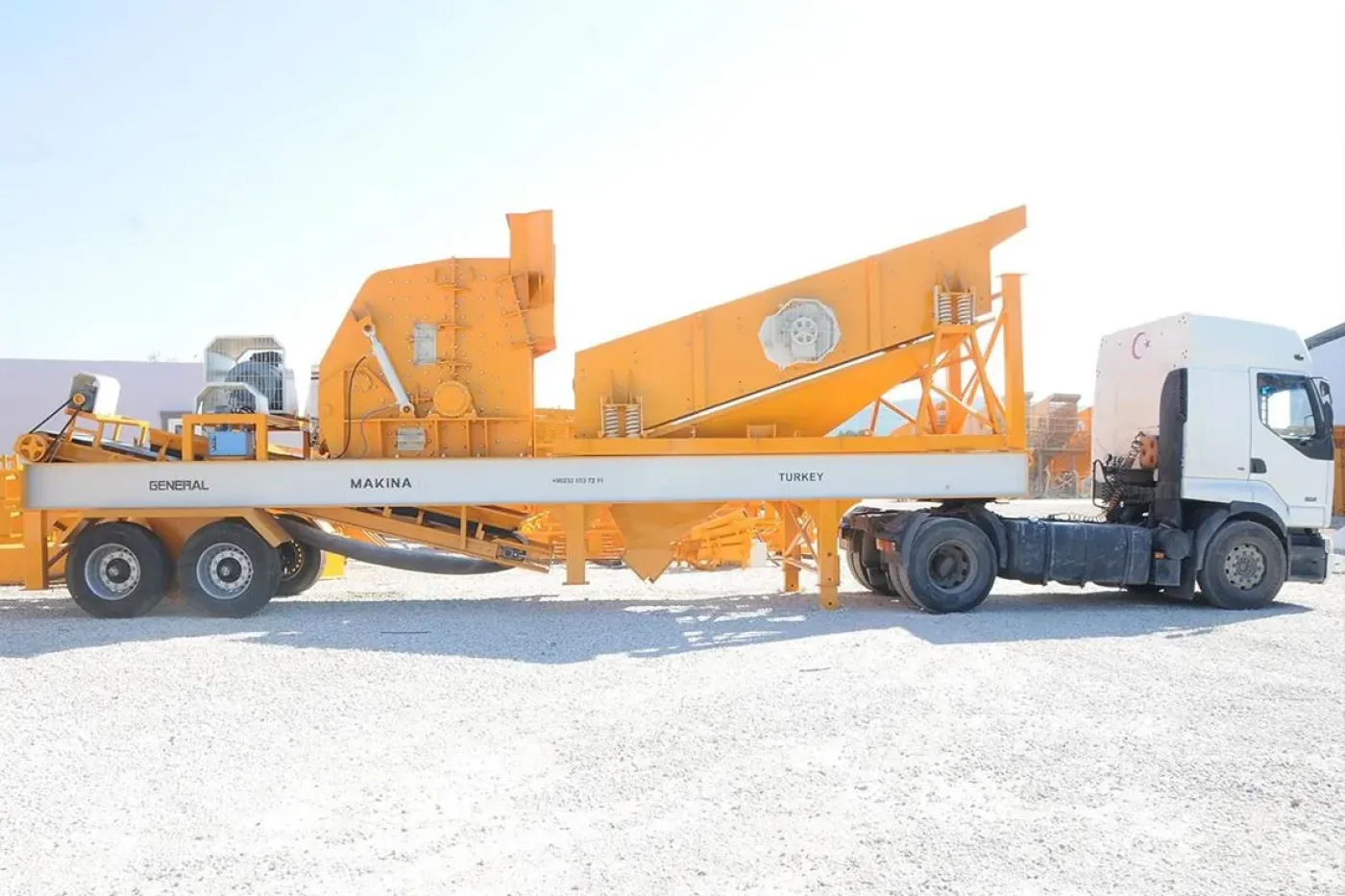

The Mobile Pre-Screen Impact Crusher (DMK) combines a vibrating pre-screen and a secondary impact crusher on one chassis; pre-screening sends only oversize to the crusher, raising capacity and efficiency. Feed 0-100 mm, product 0-30 mm, 40-300 t/h. Two crushing chambers, manganese liners, hydraulic-opening body. The Mobile Pre-Screen Impact Crusher (DMK) combines a vibrating pre-screen and a secondary impact crusher on a single chassis. It accepts 0-100 mm feed, delivers 0-30 mm product and works at 40-300 t/h. Thanks to pre-screening, only oversize enters the crusher, raising capacity and efficiency. Working principle and distinguishing feature The distinguishing feature is the integrated vibrating pre-screen: material is screened first, on-size fines by-pass the crusher, and only the coarse fraction is crushed. This avoids unnecessary crushing and saves energy and wear while raising capacity. It has two crushing chambers, manganese liners on all faces, a hydraulic-opening body for easy maintenance, adjustable gap and double-sided blow bars. Material and application Medium-to-high hardness: limestone, dolomite, granite, basalt. Manganese liners give an impact-abrasion balance; the pre-screen removes soil/fines, lowering abrasive wear in the crusher. Double-sided blow bars give 2× life per part; the pre-screen plus by-pass reduces crusher load and lowers cost per tonne. As a secondary impactor it gives a high reduction ratio. Bridge to a full plant For full gradation see Mobile Crushing Plants, and for the screen-less variant see the Mobile Secondary Impact page. Request a quote for model and pricing. S: What does the pre-screen do? C: It by-passes fines, raising capacity and lowering wear. S: How many crushing chambers? C: There are two crushing chambers. S: What are the liners? C: Manganese liners; the blow bars are double-sided (2× life). S: How is maintenance done? C: A hydraulic-opening body allows fast, safe part changes. S: Which material is it for? C: Limestone, dolomite, granite and basalt.
