Mobil 90 — Jaw Crushing, Washing & Screening Plant

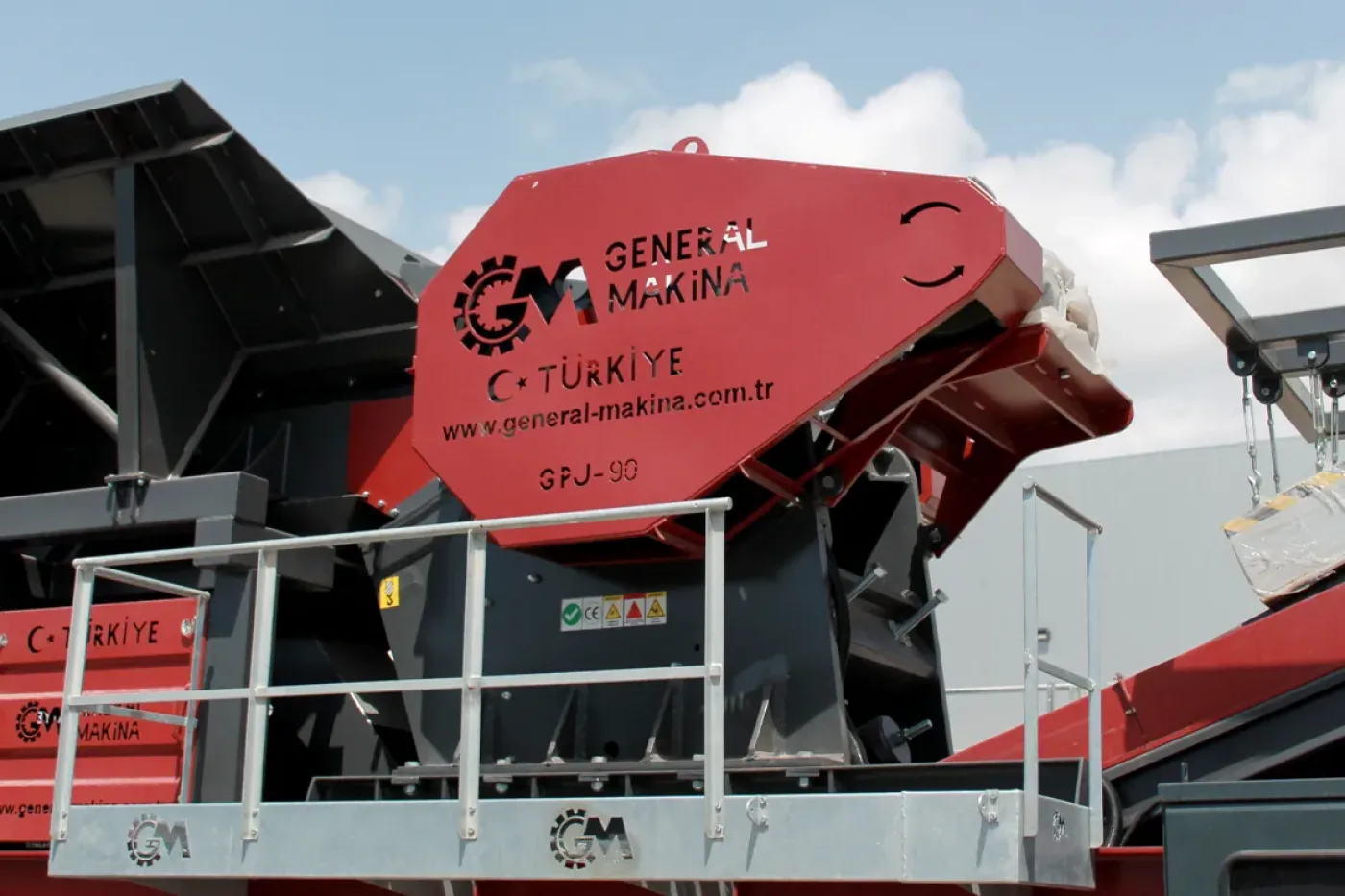

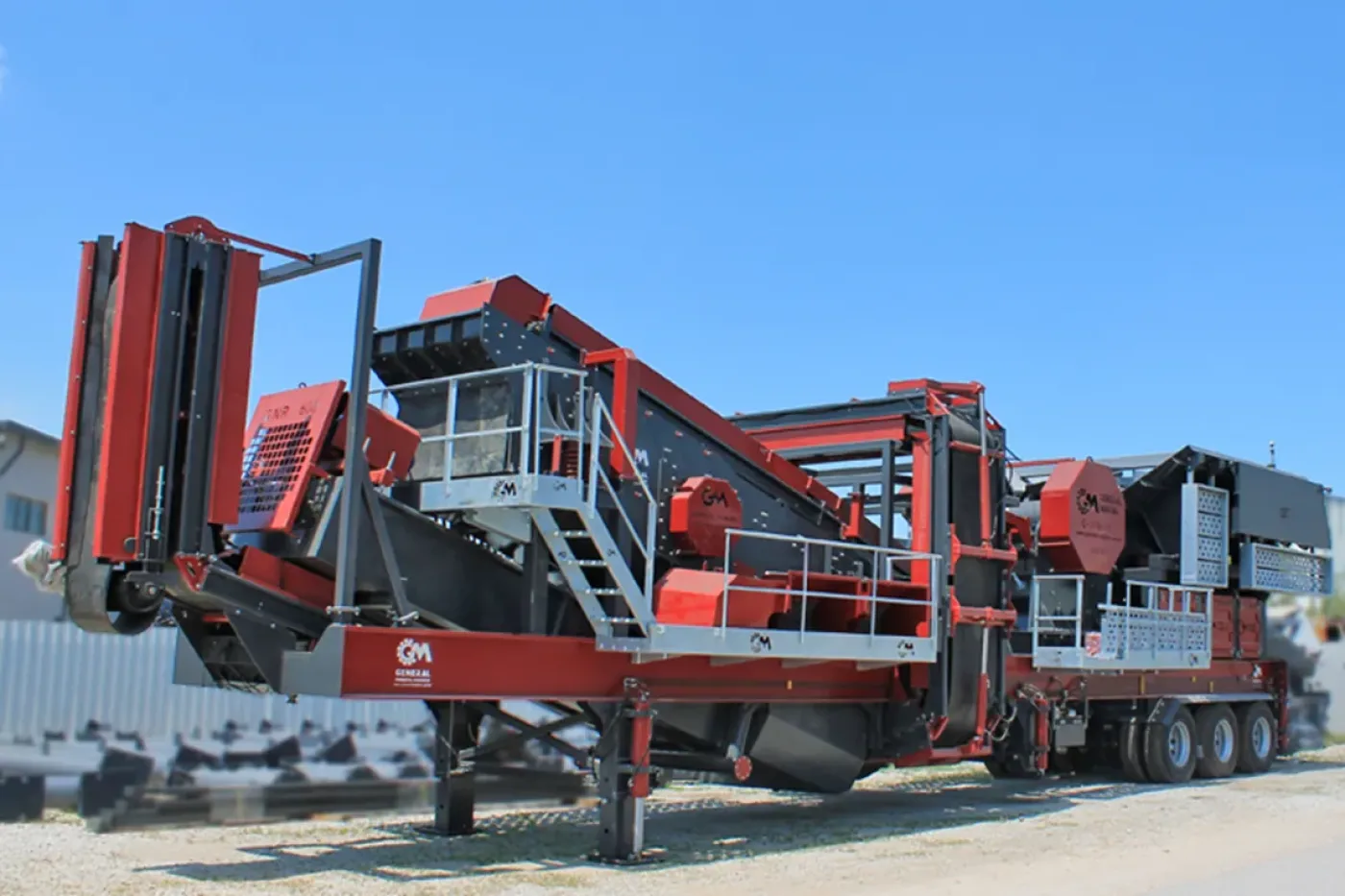

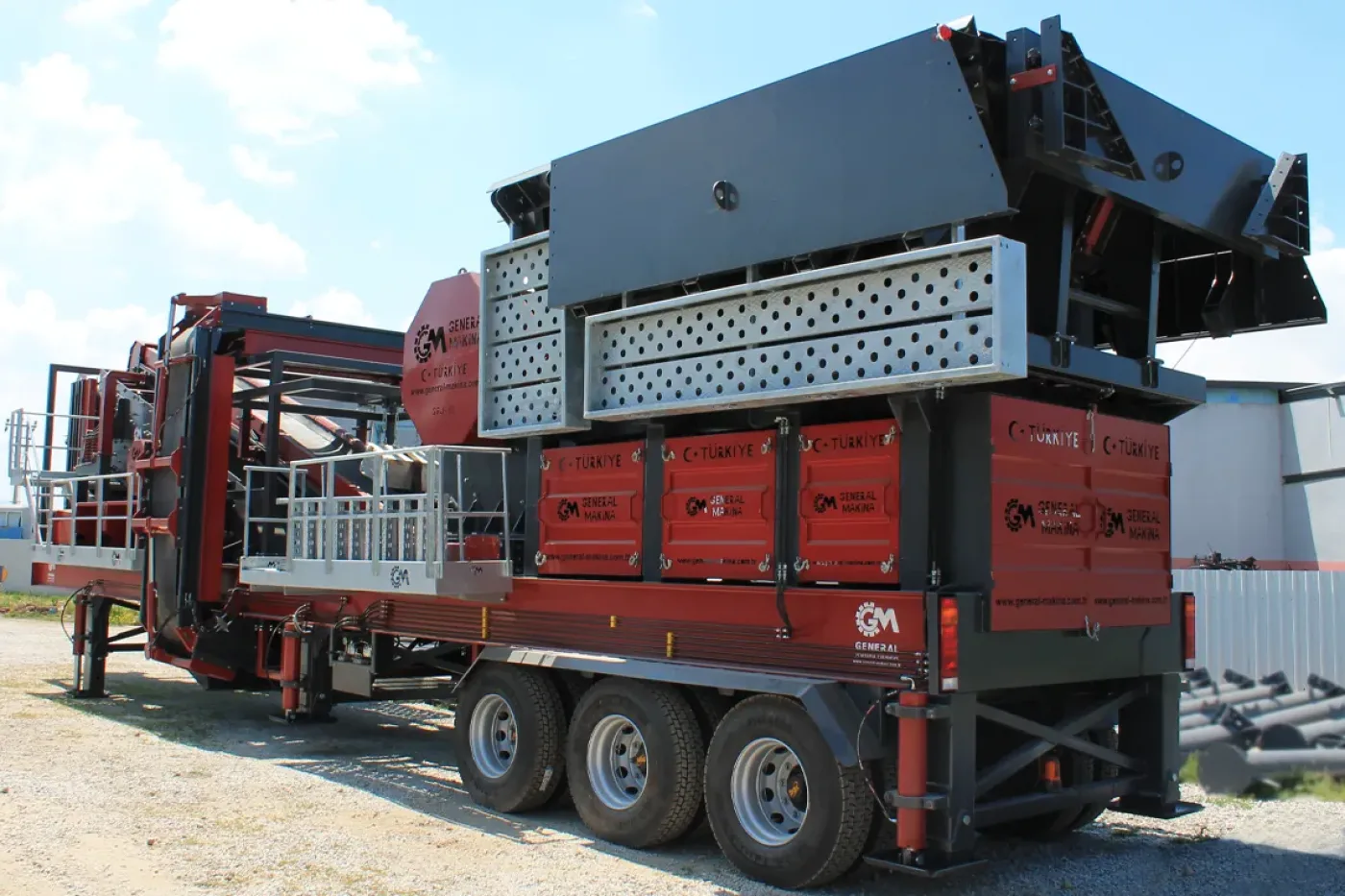

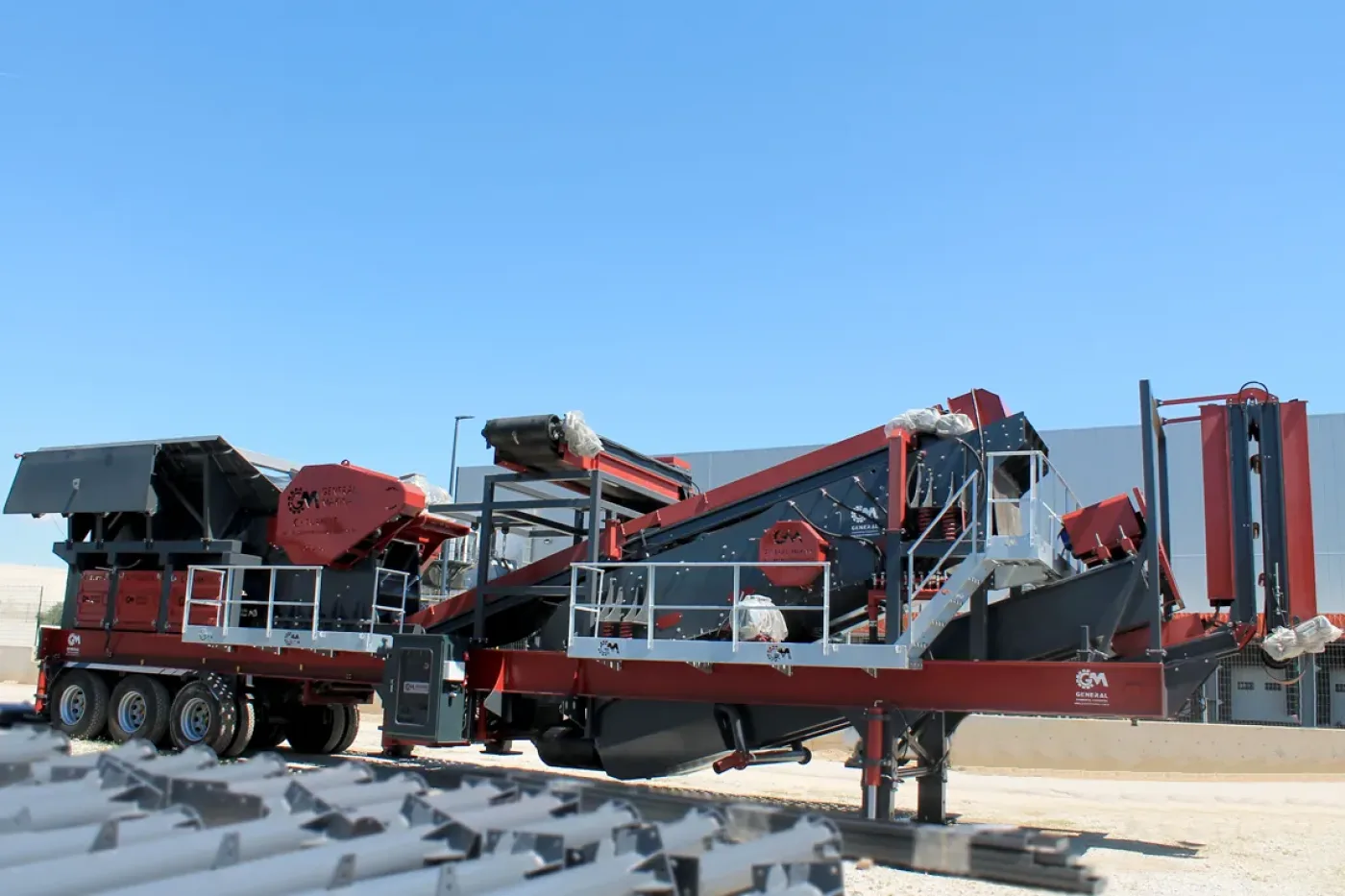

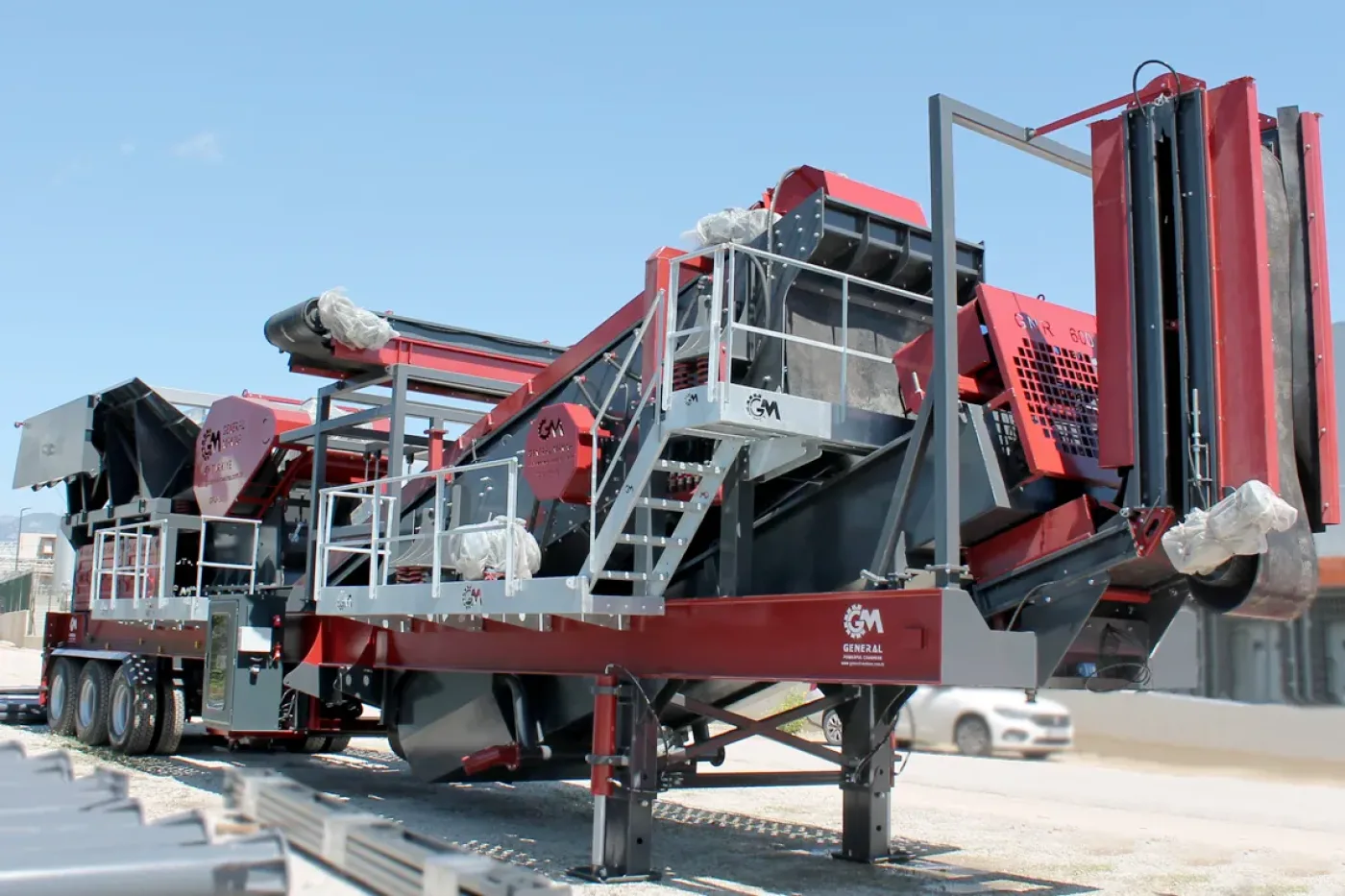

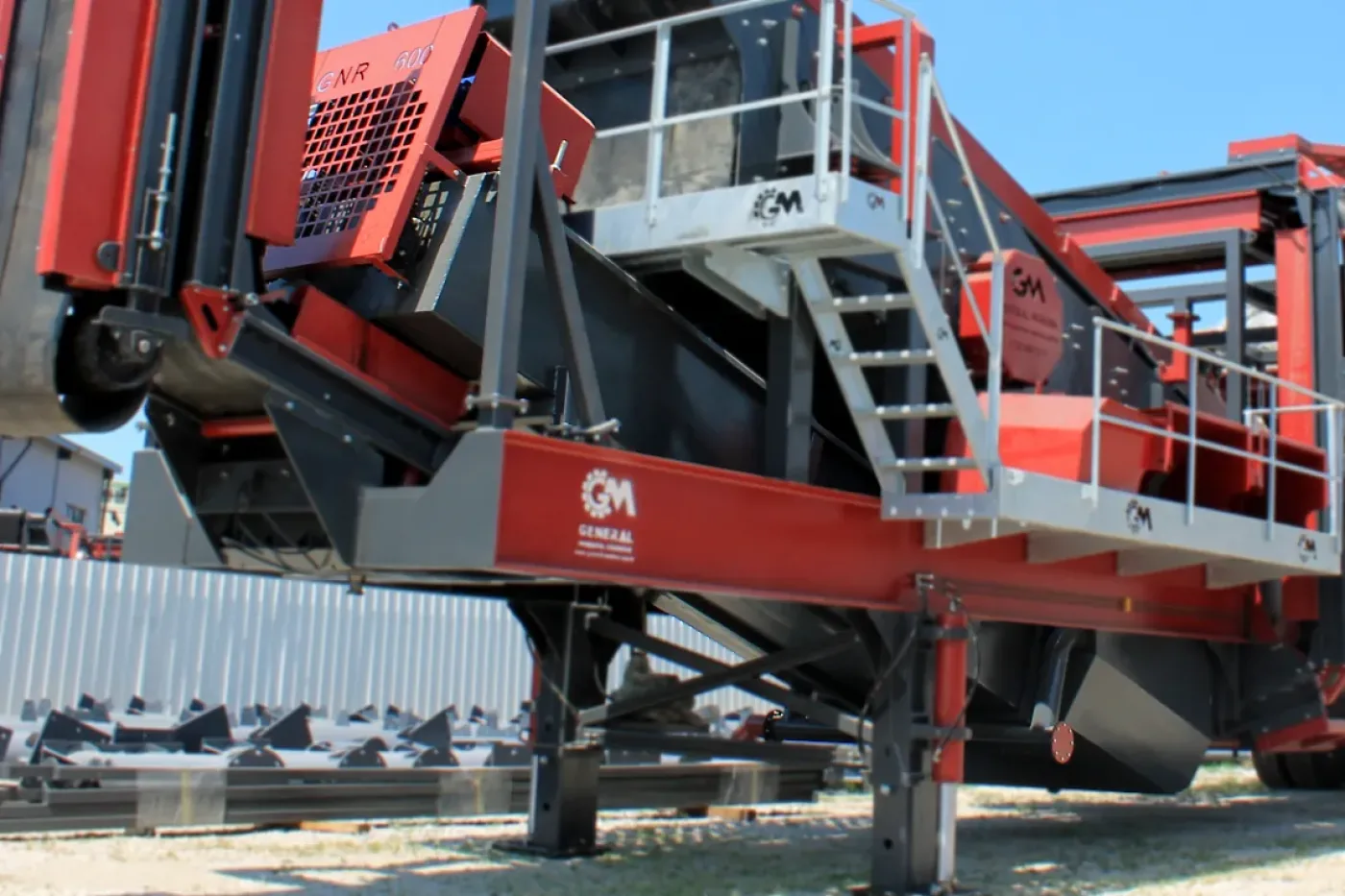

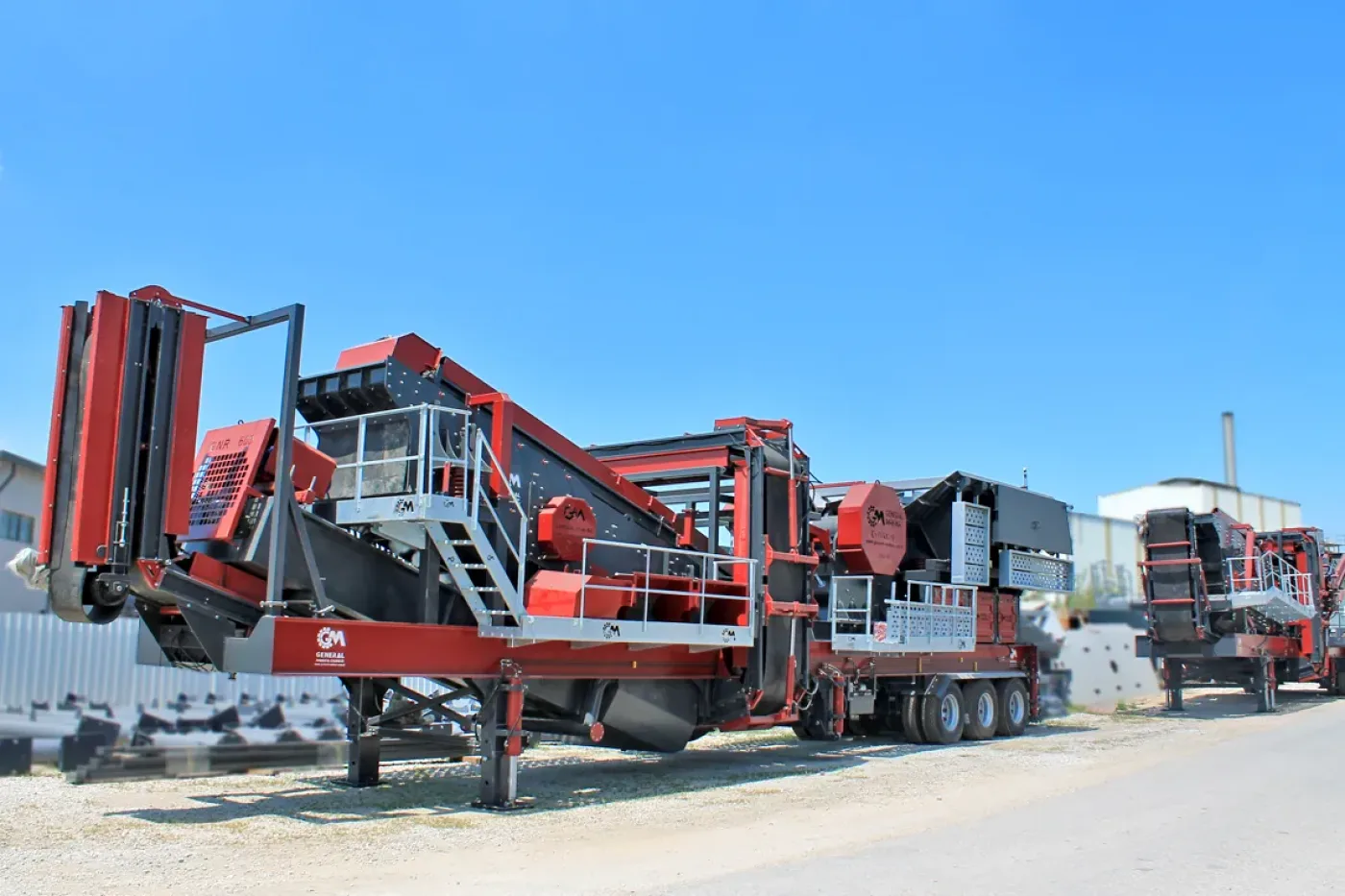

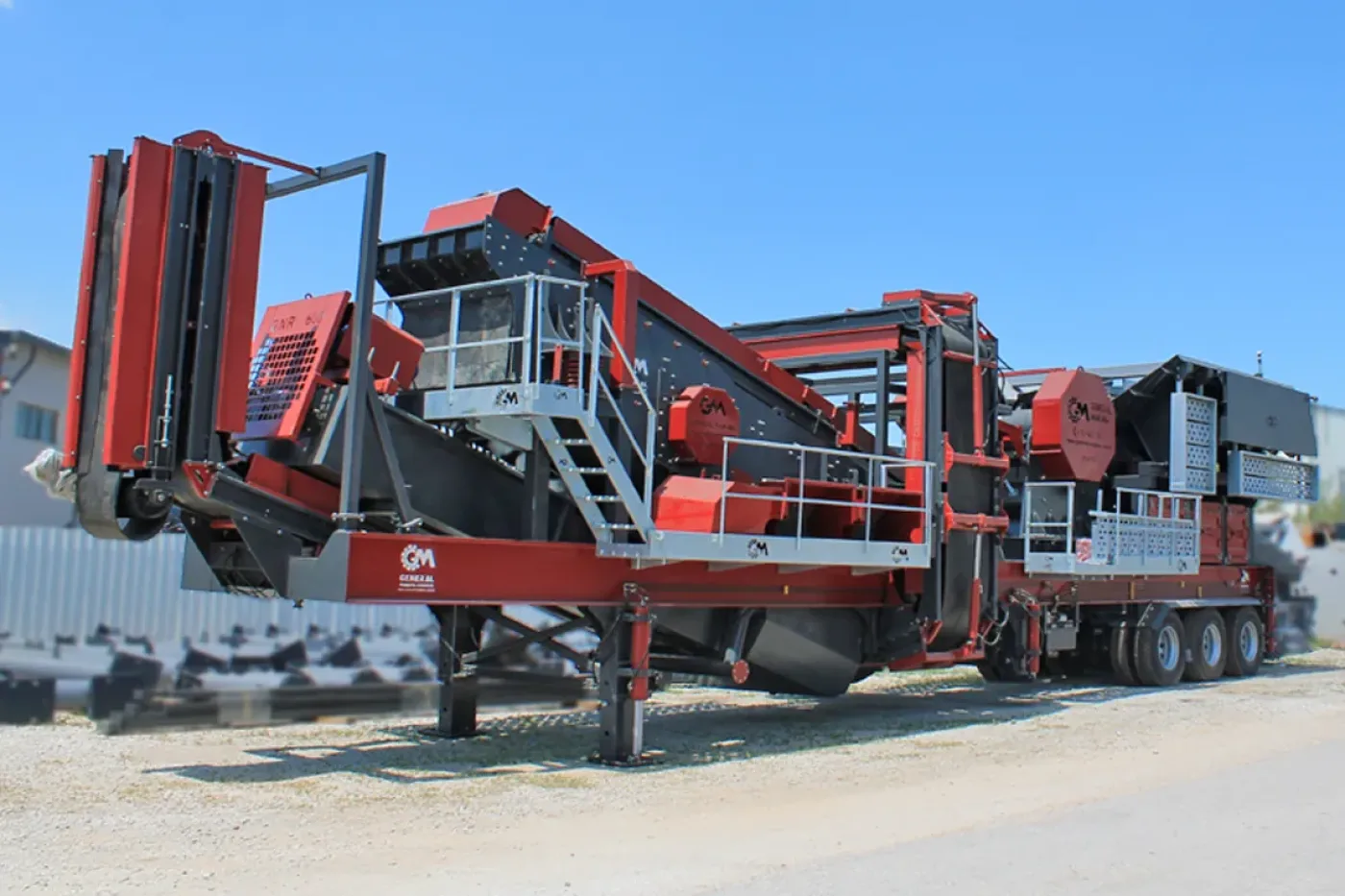

The Mobil 90 combines a jaw crusher, a washing screen and a twin fine-material screw washer on a single wheeled chassis. Its GPJ 90 jaw accepts feed up to 800 mm and the plant crushes, washes and screens riverbed and clayey material in one pass at 90-150 tph. The 0-5 mm sand fraction is recovered without loss to water. Main Equipment The Mobil 90 is a 2025-model mobile plant that combines a jaw crusher, a washing vibrating screen and a twin fine-material screw washer on a single wheeled chassis. Its GPJ 90 jaw primary accepts feed up to 800 mm, and the plant crushes, washes and screens riverbed and clayey run-of-mine in one pass at 90-150 tph — with no need for a separate washing plant. Working principle Technical data A secondary cone or impact crusher can be added ahead of the plant. Mesh apertures are set to order according to the material. Where it is used The Mobil 90 is designed for riverbed gravel, clayey run-of-mine and any ore that must be washed. The twin screw keeps the 0-5 mm fine sand out of the water, giving waste-free sand production. Where clay contamination makes clean aggregate impossible without washing, this plant solves on one chassis what dry mobile crushers cannot. Why integrated washing? Most wheeled mobile crushers run dry; crushing + washing + screening usually needs separate plants. The Mobil 90 gathers all three functions on one chassis, removing the capital and setup cost of a second washing plant. A complete plant from one source General Machinery supplies the crushing, washing and screening line together with a concrete batching plant from a single supplier. The Mobil 90 can be engineered as one integrated line with primary/secondary crushers, washers and a batching plant — one point of contact, one accountable party and a matched spare-parts chain. S: What is the capacity of the Mobil 90? C: The Mobil 90 runs at 90-150 tph. It accepts feed up to 800 mm and, with its GPJ 90 jaw, crushes, washes and screens material into 0-5, 5-20 and 20-60 mm fractions. S: How does the washing work? C: A 3/4-deck washing vibrating screen washes the material while a 600×6000 mm twin screw washer recovers the 0-5 mm fine sand. Clayey, dirty feed is cleaned in a single pass. S: Is sand lost in the process? C: No. The twin screw washer recovers the 0-5 mm sand without letting it wash away, minimising fine-sand loss. S: Can a secondary crusher be added? C: Yes. A secondary cone or impact crusher can be added ahead of the plant to produce finer, more cubical product. S: How do I get pricing and delivery? C: Send General Machinery your material type, target capacity and required output fractions; a project-specific configuration, price and delivery time are provided as a quotation.
