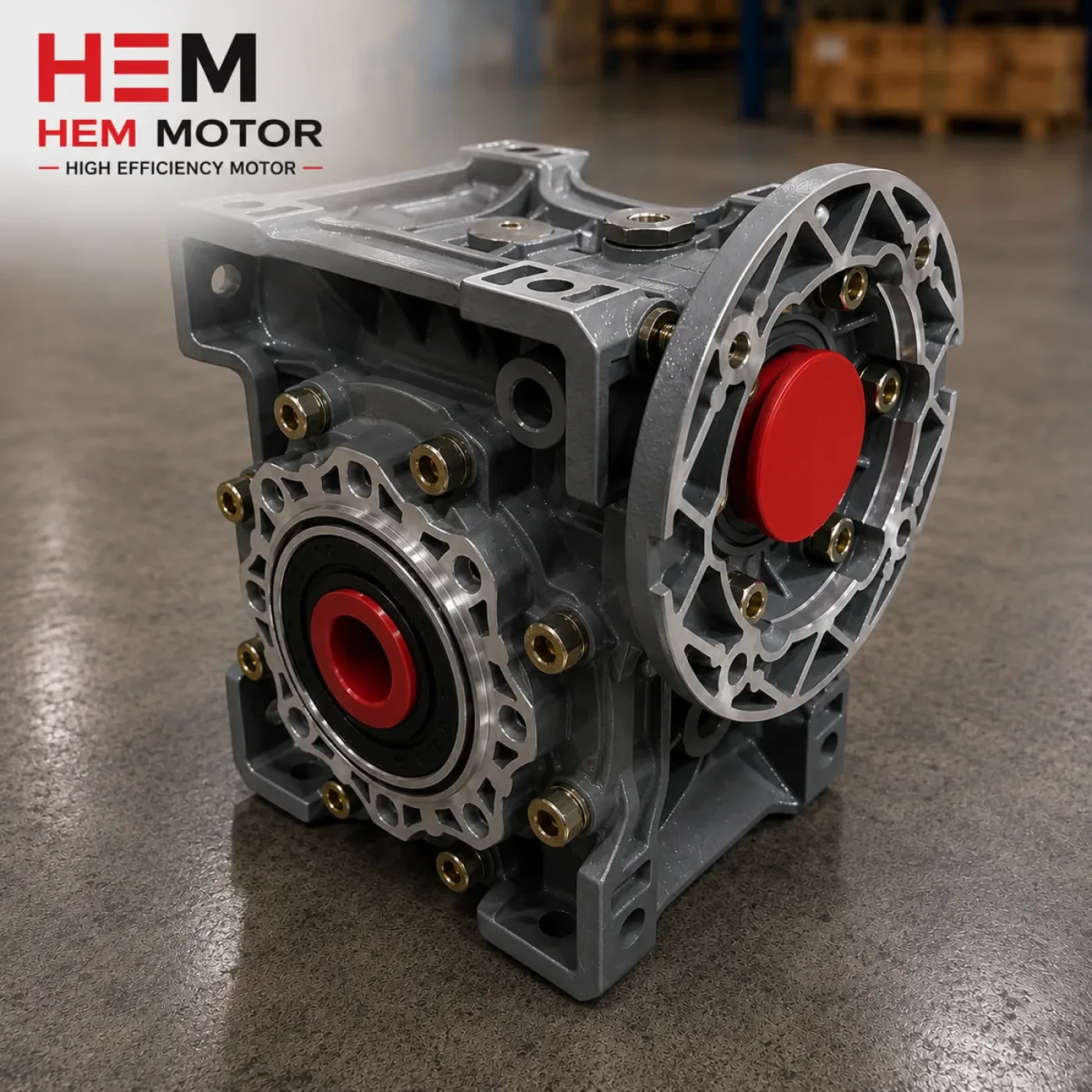

HEM40 Worm Gear Reducer

HEM40 Body Worm Gear Reducer Compact Structure, Higher Torque, Reliable Operation HEM40 body worm gear reducers are compact reducer models that provide powerful torque transmission, used in small and medium-scale machine systems. Since they have a higher load-carrying capacity than the HEM30 body, they are preferred in more powerful applications. By lowering the high speed of the electric motor, it provides lower output speed and higher torque at the output. This way, more controlled, balanced and powerful motion is achieved in machines. The reduction ratios commonly used in HEM40 body worm gear reducers are generally as follows: 1/7.5 – 1/10 – 1/15 – 1/20 – 1/25 – 1/30 – 1/40 – 1/50 – 1/60 – 1/80 – 1/100 When used with a standard 1400–1500 rpm electric motor, the approximate output speeds are: Reduction Ratio | Approx. Output Speed 1/7.5 | 190–200 rpm 1/10 | 140–150 rpm 1/15 | 90–100 rpm 1/20 | 70–75 rpm 1/25 | 55–60 rpm 1/30 | 45–50 rpm 1/40 | 35–38 rpm 1/50 | 28–30 rpm 1/60 | 23–25 rpm 1/80 | 17–19 rpm 1/100 | 14–15 rpm Thanks to these speed options, HEM40 reducers can be used in many machines that require low speed, controlled motion and high torque. HEM40 body worm gear reducers are generally suitable for coupled operation with small and medium-power electric motors. Motor Power | Application 0.12 kW | Light load applications 0.18 kW | Small conveyor and automation systems 0.25 kW | Packaging machines and light handling systems 0.37 kW | Small machines requiring more powerful motion As the connection type, B5 flanged or B14 flanged electric motors are mostly preferred. Thanks to this structure, the motor and reducer can be easily coupled. HEM40 body worm gear reducers are preferred in more powerful applications than the HEM30 body. HEM40 reducers offer an economical and reliable solution especially in machines that require quiet operation, compact structure and low speed. Thanks to the worm gear structure, HEM40 body reducers provide the advantage of quiet and balanced operation. The low-vibration operating structure contributes to machine life and increases operating comfort. Thanks to the low output speed, the motion becomes more controlled. This feature provides an advantage especially in applications that require product handling, guidance, positioning and precise feeding. HEM40 body worm gear reducers offer easy mounting in tight spaces thanks to their compact body structure. With their structure suitable for different mounting positions, they can be used in horizontal and vertical applications. Thanks to the motor connection flange, output shaft and body connection options, they can be easily integrated into many machine designs. As HEM MOTOR, we offer worm gear reducer solutions compatible with electric motors. HEM40 body worm gear reducers are one of the ideal solutions for small and medium-scale industrial machines with their compact design, powerful torque transmission, low-speed options and easy motor connection. HEM40 body reducers can be used together with 0.12 kW, 0.18 kW, 0.25 kW and 0.37 kW electric motors. HEM MOTOR — A Reliable Supplier in Motor and Reducer Solutions Quick Access: +90 (532) 345 49 86 www.Hemmotor.com 2026 Technical and Product Catalog Power, speed, current, efficiency and torque tables for the IE3 · IE4 · IE5 series, plus B3 / B5 / B35 frame dimensions — 32 pages in one PDF.
