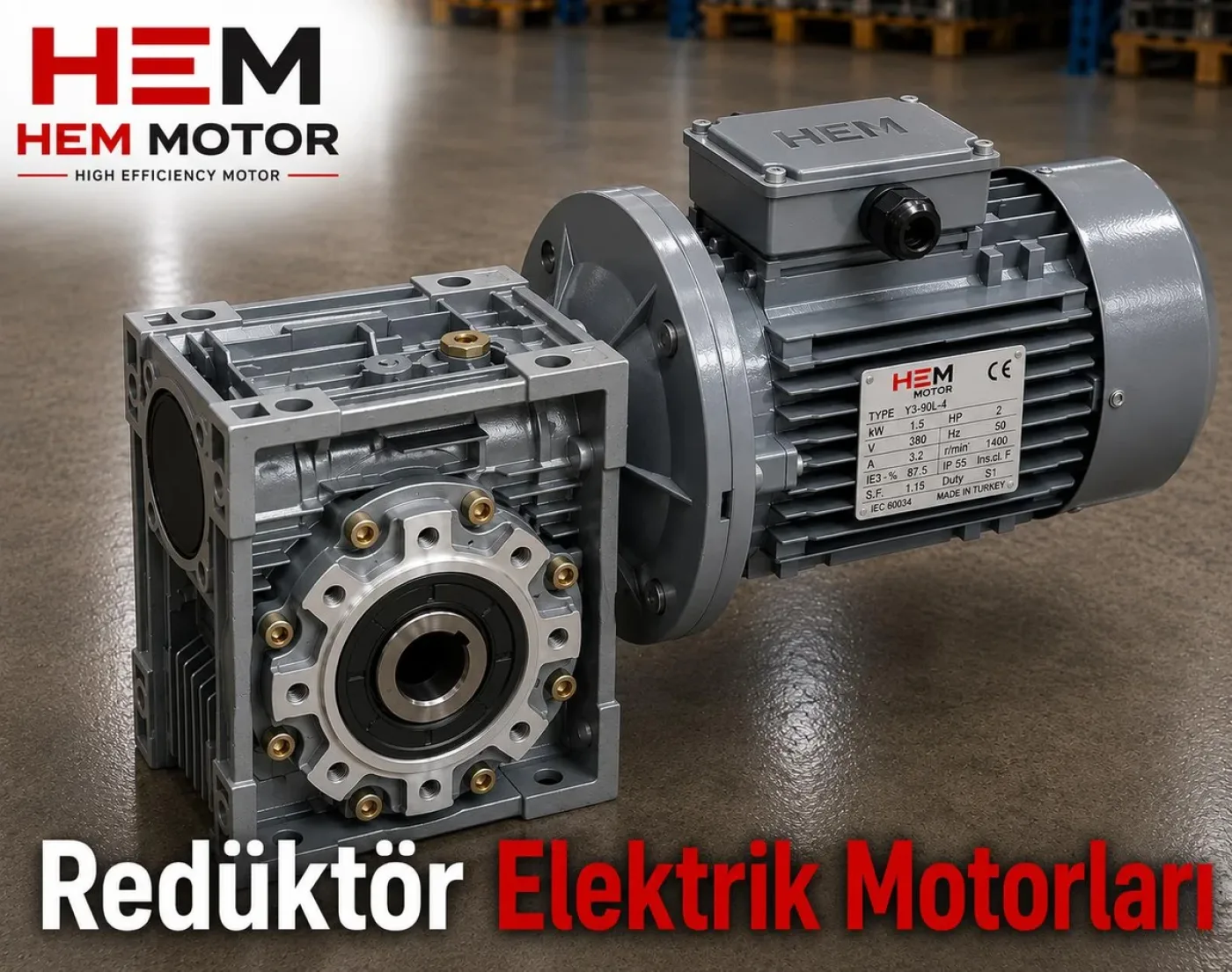

HEM130 Worm Gear Reducer

HEM130 Body Worm Gear Reducer High Torque, Strong Housing, Heavy-Duty Use HEM130 body worm gear reducers are powerful reducer models used in heavy-duty industrial machinery applications. Providing higher torque transmission than the HEM110 body, HEM130 reducers are suitable for coupled operation with larger electric motors. It reduces the high speed of the electric motor to deliver lower speed and higher torque at the output. This provides more powerful, controlled and balanced operation in machinery. The reduction ratios commonly used in HEM130 body worm gear reducers are generally as follows: 1/7.5 – 1/10 – 1/15 – 1/20 – 1/25 – 1/30 – 1/40 – 1/50 – 1/60 – 1/80 – 1/100 When used with a standard 1400–1500 rpm electric motor, the approximate output speeds are: Reduction Ratio | Approx. Output Speed 1/7.5 | 190–200 rpm 1/10 | 140–150 rpm 1/15 | 90–100 rpm 1/20 | 70–75 rpm 1/25 | 55–60 rpm 1/30 | 45–50 rpm 1/40 | 35–38 rpm 1/50 | 28–30 rpm 1/60 | 23–25 rpm 1/80 | 17–19 rpm 1/100 | 14–15 rpm Thanks to these speed options, HEM130 reducers are preferred in industrial systems that require low speed, high torque and powerful motion. HEM130 body worm gear reducers are suitable for coupled operation with high-power electric motors. When selecting the motor, the reduction ratio, output torque, operating time, load type and service factor should be evaluated together. Motor Power | Application 4 kW | Medium-heavy load applications 5.5 kW | Conveyor, auger and mixer systems 7.5 kW | Heavy-duty applications requiring strong torque 11 kW | Systems requiring high torque and intensive operation For the connection type, B5 flange or B14 flange electric motors are generally preferred. At higher powers, a B5 flange motor connection in particular is more frequently preferred. HEM130 body worm gear reducers are used in heavy-duty industrial applications that require high torque and powerful motion. HEM130 reducers provide an advantage especially in machines that require high torque, low speed, a strong housing structure and long service life . Thanks to the worm gear structure, HEM130 body reducers offer the advantage of quiet and balanced operation despite the powerful torque transmission. While reducing the motor speed, they increase the output torque and enable the machine to move in a more controlled manner. Thanks to their low-vibration operating structure, they contribute to a longer service life of the machine equipment. This feature provides an important advantage especially in continuously operating conveyors, augers, mixers and production lines. HEM130 body worm gear reducers are suitable for heavy industrial operating conditions thanks to their robust housing structure. They provide reliable performance in applications requiring high torque transmission. Thanks to their structure suitable for different mounting positions, they can be used in machines requiring horizontal, vertical or angled connection. With their motor connection flange, output shaft and housing connection options, they can be easily integrated into many machine designs. As HEM MOTOR, we offer worm gear reducer solutions compatible with electric motors. HEM130 body worm gear reducers are one of the ideal solutions for heavy-duty industrial machinery with their high torque capacity, strong housing structure, low speed options and easy motor connection. HEM130 body reducers can be used together with 4 kW, 5.5 kW, 7.5 kW and 11 kW electric motors. HEM MOTOR — A Reliable Supplier in Motor and Reducer Solutions Quick Access: +90 (532) 345 49 86 www.Hemmotor.com 2026 Technical and Product Catalog Power, speed, current, efficiency and torque tables for the IE3 · IE4 · IE5 series, plus B3 / B5 / B35 frame dimensions — 32 pages in one PDF.
