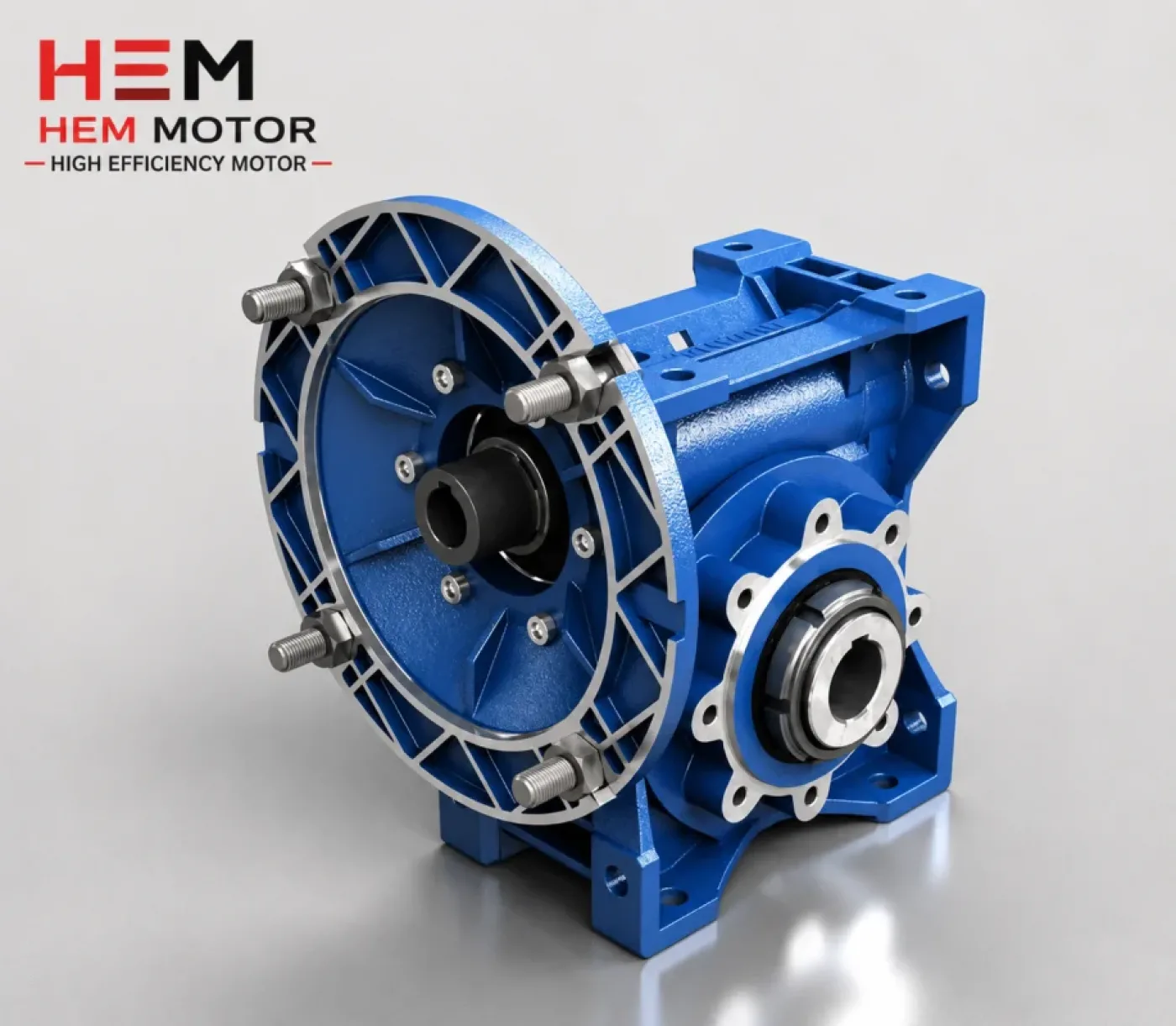

HEM30 Worm Gear Reducer

HEM30 Body Worm Gear Reducer Compact Body, Quiet Operation, Reliable Power Transmission HEM30 body worm gear reducers are compact reducer models used in machines and automation systems operating at low power levels. Despite their small body size, they deliver high torque transmission, providing a reliable solution in many applications that require low output speed. These types of reducers lower the high speed of the electric motor to provide a more controlled, more powerful and more stable output motion. Thanks to the worm gear structure, they offer the advantages of quiet operation, vibration-free movement and compact mounting. The reduction ratios commonly used in HEM30 body worm gear reducers are generally as follows: 1/7.5 – 1/10 – 1/15 – 1/20 – 1/25 – 1/30 – 1/40 – 1/50 – 1/60 – 1/80 – 1/100 The reducer output speed varies according to the speed of the connected electric motor and the selected reduction ratio. As standard, when a 1400–1500 rpm electric motor is used, the approximate output speeds are as follows: Reduction Ratio | Approx. Output Speed 1/7.5 | 190–200 rpm 1/10 | 140–150 rpm 1/15 | 90–100 rpm 1/20 | 70–75 rpm 1/25 | 55–60 rpm 1/30 | 45–50 rpm 1/40 | 35–38 rpm 1/50 | 28–30 rpm 1/60 | 23–25 rpm 1/80 | 17–19 rpm 1/100 | 14–15 rpm For this reason, HEM30 body reducers are preferred especially in systems that require low speed and controlled motion . HEM30 body worm gear reducers are suitable for coupled operation with low-power electric motors. The commonly used motor powers are generally as follows: Motor Power | Application 0.06 kW | Very light loads, small automation systems 0.09 kW | Light load applications 0.12 kW | Packaging, small conveyors and light machines 0.18 kW | Small systems requiring more powerful motion In HEM30 body reducers, the common motor connections are made with IEC 56 and IEC 63 motor frames. As the connection type, B5 flanged or B14 flanged motors are generally preferred. Thanks to these connections, the reducer can be easily coupled with the electric motor. HEM30 body worm gear reducers can be used in many small and medium-scale applications. HEM30 body worm gear reducers provide an advantage especially where low speed, quiet operation and compact mounting are required. The worm gear system provides quieter and smoother movement during operation. Thanks to this feature, HEM30 reducers offer comfortable and balanced operation in continuously running small machines. Thanks to the low-speed output, machine movements become more controlled. This provides an important advantage especially in precise feeding, product handling, small load lifting and positioning applications. One of the most important advantages of HEM30 body reducers is their compact structure. They can be easily mounted in tight spaces. They save space in small machine designs. Thanks to their structure suitable for different mounting positions, they can be used in horizontal or vertical applications. The motor connection flange and output shaft options can be selected according to the machine requirement. As HEM MOTOR, we offer worm gear reducer solutions compatible with electric motors. HEM30 body worm gear reducers are one of the ideal solutions for low-power industrial applications with their compact size, quiet operation, low-speed options and easy motor connection. HEM30 body reducers can be used together with 0.06 kW, 0.09 kW, 0.12 kW and 0.18 kW electric motors. HEM MOTOR — A Reliable Supplier in Motor and Reducer Solutions Quick Access: +90 (532) 345 49 86 www.Hemmotor.com 2026 Technical and Product Catalog Power, speed, current, efficiency and torque tables for the IE3 · IE4 · IE5 series, plus B3 / B5 / B35 frame dimensions — 32 pages in one PDF.
