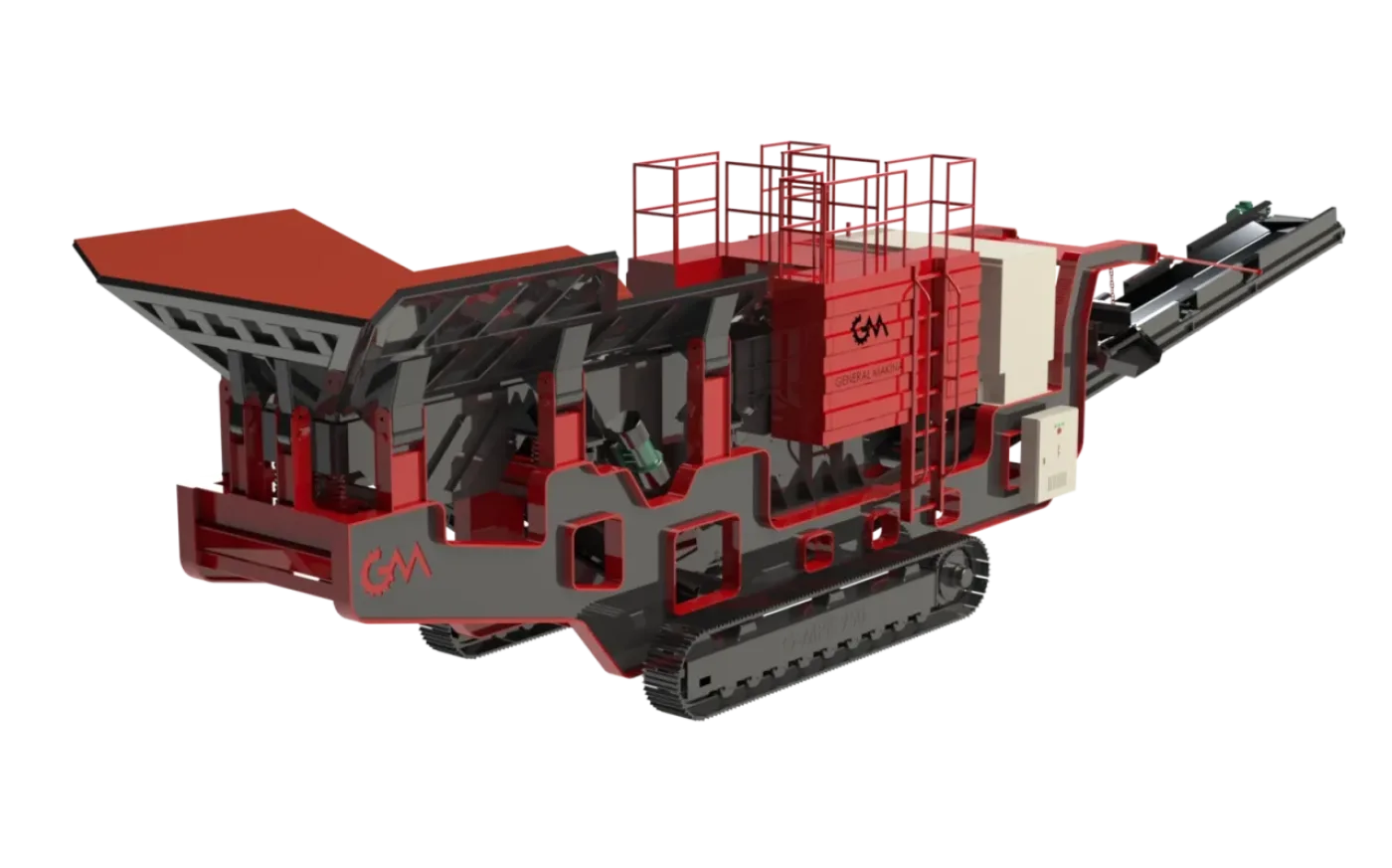

GM 100 — Tracked Mobile Impact Crusher

The GM 100 is a track-mounted impact crusher with a GNR-01 impactor (160 kW, 1500 rpm), grizzly pre-scalping and a 1500×5500 mm triple-deck track screen in full closed circuit. It takes feed up to 600 mm, works at 100-180 tph and drives itself — no foundation needed. It is the most fully equipped member of the tracked family. The GM 100 is a track-mounted impact crusher centred on a GNR-01 impactor (160 kW, 1500 rpm). Grizzly pre-scalping and an on-board 1500×5500 mm triple-deck track screen let it run a full closed circuit, sending material round again until it hits size. It handles feed up to 600 mm, makes cubical aggregate at 100-180 tph and drives itself — no ground works needed. Closed-circuit flow Technical rundown Application areas Limestone and other low-abrasive stone, concrete and asphalt recycling and cubical aggregate work all suit the GM 100. Its built-in triple-deck track screen and several stockpile belts arrive ready — nothing to assemble on site — and, closed-circuit, it hands over the target fraction in one pass. Set against the GM 90JP and GM 125 Where the GM 90JP is a tracked jaw primary, the GM 100 is a tracked impactor, marked out by its on-board triple-deck screen and closed circuit. The GM 125 steps up with a bigger feeder and a 200 kW impactor for more tonnage. You reach for an impactor when you want high reduction and cubical shape, and a jaw for hard, abrasive primary work. Engineered as a full line General Machinery bundles the tracked GM 100 into a wider installation — screening, downstream crushing and a concrete batching plant included. One engineering office draws it all up, stands behind the running plant and keeps a single, matched channel for spare parts. S: Which crusher does the GM 100 use? C: A GNR-01 impactor (160 kW, 1500 rpm). The impact type is used for high reduction and cubical aggregate. S: What are its capacity and feed size? C: It works at 100-180 tph and takes feed up to 600 mm. S: Is the screen integrated and closed-circuit? C: Yes. The 1500×5500 mm triple-deck track screen and the stockpile belts are on board; closed-circuit, it keeps recirculating material until it reaches the target size. S: Is it tracked and self-propelled? C: Yes, on Strickland 3800×400 tracks; it drives itself and needs no ground works, hydraulic legs or foundation. S: How do I get pricing and delivery? C: Send General Machinery your material, throughput and required fractions; a build made for the job, its price and delivery date come back as a quotation.
